AD7782BRUZ - Analog Devices

Description: 2-Channel Single ADC Delta-Sigma 19.79sps 24-bit Serial 16-Pin TSSOP Tube

Download AD7782BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

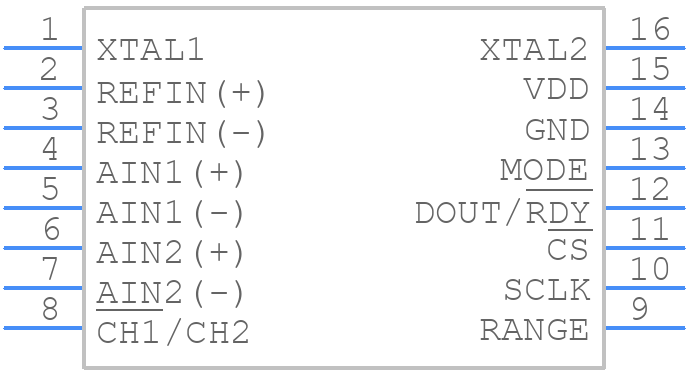

AD7782BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7782BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD7782BRUZ - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD7782BRUZ Details

  • Manufacturer Part Number:

    AD7782BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    PLASTIC, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.56 V

  • Analog Input Voltage-Min:

    -2.56 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.001%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.032768 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    1.7 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7782BRUZ Frequently Asked Questions (FAQs)

  • The AD7782BRUZ is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep the analog and digital grounds separate, and place the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed as close as possible to the ADC's power pins.
  • To optimize the AD7782BRUZ's performance for low-noise applications, ensure that the analog input signals are properly filtered and buffered, use a low-noise voltage reference, and minimize digital noise coupling into the analog circuitry. Additionally, consider using a shielded enclosure and keep the ADC away from high-frequency sources.
  • The AD7782BRUZ has an internal calibration mechanism, but it may require external calibration for optimal performance. The recommended calibration procedure involves applying a known input voltage, reading the output code, and adjusting the internal calibration registers accordingly. Refer to the datasheet and application notes for detailed calibration procedures.
  • The AD7782BRUZ has a serial interface that can be easily interfaced with a microcontroller or FPGA. The ADC's serial interface is compatible with SPI, QSPI, and MICROWIRE protocols. Ensure that the interface clock frequency and data transfer protocol match the requirements specified in the datasheet.
  • The AD7782BRUZ is a high-precision ADC that can be sensitive to temperature changes. Ensure that the device is operated within the recommended temperature range (−40°C to +105°C), and consider using thermal management techniques such as heat sinks or thermal interfaces to maintain a stable temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7782BRUZ Overview

Use the download button to access the AD7782BRUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD778, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
