AD7783BRUZ - Analog Devices

Description: AD7783BRUZ, 24 bit ADC Differential, SPI, 16-Pin TSSOP

Download AD7783BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

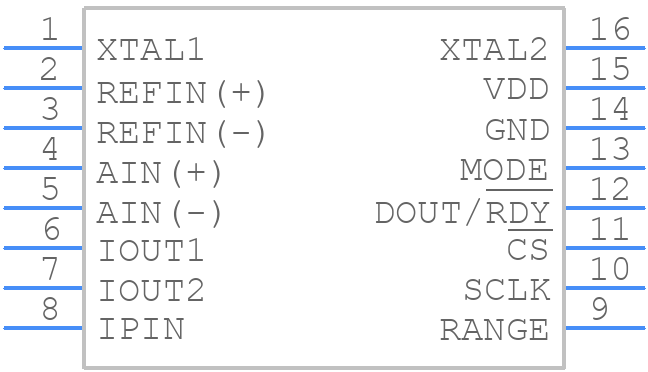

Symbol
AD7783BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7783BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD7783BRUZ - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD7783BRUZ Details

  • Manufacturer Part Number:

    AD7783BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MS-153-AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.56 V

  • Analog Input Voltage-Min:

    -2.56 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.001%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.032768 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    1.7 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7783BRUZ Frequently Asked Questions (FAQs)

  • The AD7783BRUZ is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep the analog and digital grounds separate, and place the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed as close as possible to the ADC's power pins.
  • To optimize the AD7783BRUZ's performance for low-noise applications, ensure that the analog input signals are properly filtered and buffered, use a low-noise voltage reference, and minimize digital noise coupling into the analog circuitry. Additionally, consider using a shielded enclosure and keep the ADC away from high-frequency sources.
  • The AD7783BRUZ requires a calibration procedure to ensure accurate conversions. The recommended calibration procedure involves applying a known input voltage, reading the output code, and calculating the gain and offset coefficients. The calibration procedure should be performed at the operating temperature range and with the same voltage reference used in the application.
  • The AD7783BRUZ has an internal clock that can be synchronized with an external clock source. To handle the internal clock and clock synchronization, ensure that the internal clock is enabled, and the clock synchronization pin (CLKSYNC) is properly connected to the external clock source. Additionally, ensure that the clock frequency is within the recommended range (1-4 MHz).
  • When using the AD7783BRUZ in a multi-channel application, consider the channel-to-channel crosstalk, and ensure that the analog input signals are properly multiplexed and buffered. Additionally, consider using a separate voltage reference for each channel, and ensure that the ADC's power supply is properly decoupled and filtered.
