AD7788ARMZ-REEL - Analog Devices

Description: 1-Channel Single ADC Delta-Sigma 16.6sps 16-bit Serial 10-Pin MSOP T/R

Download AD7788ARMZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

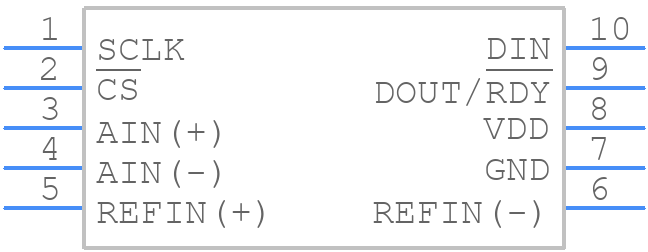

Symbol
AD7788ARMZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7788ARMZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10
click to zoom
3D Models
AD7788ARMZ-REEL - Analog Devices - 3D model - Small Outline Packages - RM-10
click to zoom

AD7788ARMZ-REEL Details

  • Manufacturer Part Number:

    AD7788ARMZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.25 V

  • Analog Input Voltage-Min:

    0.1 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.005%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.08 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7788ARMZ-REEL Frequently Asked Questions (FAQs)

  • The AD7788ARMZ-REEL is a sensitive analog device, and proper layout and placement are crucial. It is recommended to keep the device away from high-frequency signals, use a solid ground plane, and keep the analog and digital grounds separate. Additionally, decoupling capacitors should be placed close to the device, and the analog input pins should be shielded from digital signals.
  • The AD7788ARMZ-REEL has an internal calibration mechanism, but it may require additional external calibration for high-accuracy applications. It is recommended to use the device's internal calibration mode and then perform external calibration using a known reference voltage source. The calibration process should be repeated at different temperatures and voltage levels to ensure optimal performance.
  • The maximum sampling rate of the AD7788ARMZ-REEL is 30 kSPS. However, the device's performance may degrade at higher sampling rates due to increased noise and decreased signal-to-noise ratio. It is recommended to use a sampling rate that balances the required data acquisition speed with the desired level of accuracy and noise performance.
  • The AD7788ARMZ-REEL has a power-on reset (POR) circuit that ensures the device is in a known state after power-up. The POR circuit holds the device in reset until the power supply reaches a minimum threshold. After POR, the device goes through a startup sequence that includes internal calibration and initialization. It is recommended to wait for the device to complete its startup sequence before initiating data conversion.
  • When selecting an external reference voltage for the AD7788ARMZ-REEL, consider the reference voltage's accuracy, stability, and noise performance. The reference voltage should be stable and low-noise to ensure accurate conversions. Additionally, the reference voltage should be within the device's specified range, and its output impedance should be low enough to drive the device's input capacitance.
