AD7790BRMZ - Analog Devices

Description: AD7790BRMZ, 16-Bit Analogue to Digital Converter, Differential, SPI, 10-Pin MSOP

Download AD7790BRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

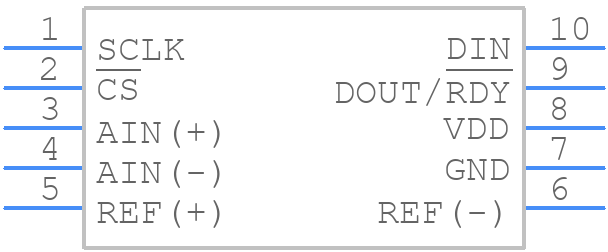

AD7790BRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7790BRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10
click to zoom
3D Models
AD7790BRMZ - Analog Devices - 3D model - Small Outline Packages - RM-10
click to zoom

AD7790BRMZ Details

  • Manufacturer Part Number:

    AD7790BRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.16 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7790BRMZ Frequently Asked Questions (FAQs)

  • The AD7790BRMZ requires careful layout and placement to minimize noise and ensure accurate conversions. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • To optimize the AD7790BRMZ's performance, it is essential to understand the specific requirements of your application. This includes selecting the correct gain, filter settings, and data rate. Additionally, ensuring proper PCB layout, using adequate decoupling, and minimizing noise sources can also improve performance.
  • The AD7790BRMZ requires calibration to ensure accurate conversions. The recommended calibration procedure involves applying a known input voltage, taking multiple readings, and calculating the gain and offset coefficients. These coefficients can then be used to correct for any errors in subsequent conversions.
  • The AD7790BRMZ provides error flags and interrupt signals to indicate errors or exceptions. It is essential to implement error handling routines to detect and respond to these flags and interrupts. This may include retrying conversions, resetting the device, or alerting the user to potential issues.
  • The AD7790BRMZ is sensitive to temperature changes, which can affect its performance and accuracy. It is essential to ensure proper thermal management, including providing adequate heat dissipation, minimizing thermal gradients, and avoiding extreme temperatures.
