AD7798BRUZ - Analog Devices

Description: AD7798BRUZ, 16-Bit Analogue to Digital Converter, Differential, SPI, 16-Pin TSSOP

Download AD7798BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

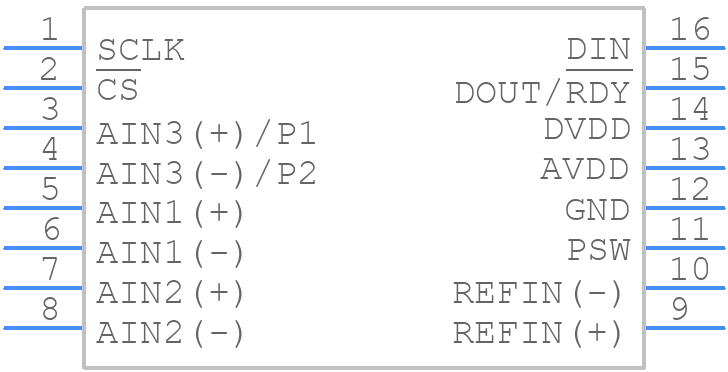

Symbol
AD7798BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7798BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 PIN TSSOP
click to zoom
3D Models
AD7798BRUZ - Analog Devices - 3D model - Small Outline Packages - 16 PIN TSSOP
click to zoom

AD7798BRUZ Details

  • Manufacturer Part Number:

    AD7798BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7798BRUZ Frequently Asked Questions (FAQs)

  • The AD7798BRUZ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • To optimize the AD7798BRUZ's performance, it is essential to understand the specific requirements of your application. This includes selecting the correct gain, filter settings, and data rate. Additionally, ensuring proper signal conditioning, using the correct reference voltage, and optimizing the analog front-end design can also improve performance.
  • Common pitfalls to avoid when using the AD7798BRUZ include incorrect pin connections, inadequate power supply decoupling, and insufficient analog signal conditioning. Additionally, not following the recommended layout and placement guidelines, and not properly configuring the device's registers can also lead to suboptimal performance.
  • To troubleshoot issues with the AD7798BRUZ, start by verifying the device's configuration and register settings. Check the power supply and decoupling, and ensure that the analog signals are properly conditioned. Use the device's built-in diagnostic features, such as the internal diagnostic register, to identify potential issues. If problems persist, consult the datasheet and application notes, or contact Analog Devices' support team.
  • The AD7798BRUZ has a maximum junction temperature of 150°C. To ensure reliable operation, it is essential to maintain a safe operating temperature. This can be achieved by providing adequate heat sinking, using a thermally conductive package, and minimizing power consumption. Additionally, ensuring good airflow and avoiding high ambient temperatures can also help prevent thermal issues.
