AD7799BRUZ-REEL - Analog Devices

Description: Analog To Digital Converters (ADCs) 24 470 3 SPI, DSP 2.7V~5.25V TSSOP-16 RoHS

Download AD7799BRUZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

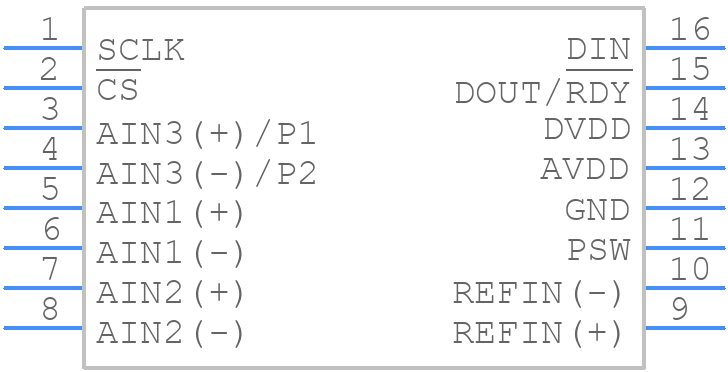

Symbol
AD7799BRUZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7799BRUZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)--
click to zoom
3D Models
AD7799BRUZ-REEL - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)--
click to zoom

AD7799BRUZ-REEL Details

  • Manufacturer Part Number:

    AD7799BRUZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    3

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7799BRUZ-REEL Frequently Asked Questions (FAQs)

  • The AD7799BRUZ-REEL is a sensitive analog device, and proper layout and placement are crucial. It is recommended to keep the device away from high-frequency sources, use a solid ground plane, and keep analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device to minimize noise.
  • The AD7799BRUZ-REEL requires a two-point calibration process to achieve optimal accuracy. The device should be calibrated at two known voltage points, typically 0V and the full-scale voltage, to determine the gain and offset errors. The calibration process can be done using the device's internal calibration registers or through external calibration using a microcontroller.
  • The recommended power-up sequence for the AD7799BRUZ-REEL is to first apply the analog supply voltage (AVDD) and then the digital supply voltage (DVDD). The device should be powered up in the following order: AVDD, DVDD, and then the clock signal. This sequence ensures that the device powers up correctly and prevents damage or incorrect operation.
  • The AD7799BRUZ-REEL can operate in either internal clock mode or external clock mode. In internal clock mode, the device uses its internal oscillator to generate the clock signal. In external clock mode, an external clock signal is required. The device's clock mode is selected using the CLKMODE pin. It is essential to ensure that the clock signal meets the device's clock frequency and duty cycle requirements to ensure proper operation.
  • The AD7799BRUZ-REEL is a sensitive analog device that can be affected by temperature. It is essential to ensure that the device operates within its specified temperature range (-40°C to 125°C). Thermal considerations include providing adequate heat dissipation, avoiding thermal gradients, and ensuring that the device is not exposed to extreme temperatures during storage or operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7799BRUZ-REEL Overview

Use the download button to access the AD7799BRUZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD779, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
