AD7799BRUZ - Analog Devices

Description: 3-Channel, Low Noise, Low Power, 16-/24-Bit, ∑-Δ ADC with On-Chip In-Amp

Download AD7799BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

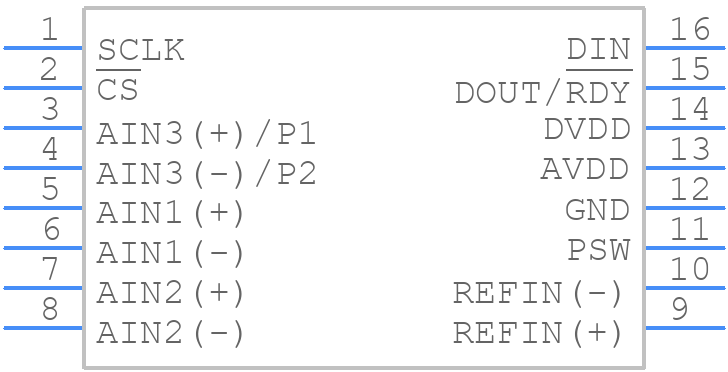

AD7799BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7799BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-16-1
click to zoom
3D Models
AD7799BRUZ - Analog Devices - 3D model - Small Outline Packages - TSSOP-16-1
click to zoom

AD7799BRUZ Details

  • Manufacturer Part Number:

    AD7799BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    3

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7799BRUZ Frequently Asked Questions (FAQs)

  • The AD7799BRUZ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • To optimize the AD7799BRUZ's performance, it is essential to understand the specific requirements of your application. This includes selecting the correct gain and offset settings, configuring the filter settings, and optimizing the sampling rate. Additionally, it is crucial to ensure that the device is properly calibrated and that the analog input signals are within the recommended range.
  • Common pitfalls to avoid when using the AD7799BRUZ include incorrect pin connections, inadequate power supply decoupling, and insufficient analog input signal conditioning. Additionally, failing to properly configure the device's registers, ignoring the device's thermal characteristics, and not following the recommended layout and placement guidelines can also lead to suboptimal performance.
  • To troubleshoot issues with the AD7799BRUZ, start by verifying that the device is properly powered and that the analog input signals are within the recommended range. Check the device's registers to ensure that they are correctly configured, and verify that the clock signals are stable and within the recommended frequency range. If issues persist, consult the datasheet and application notes for guidance, and consider seeking support from Analog Devices' technical support team.
  • The AD7799BRUZ has a maximum junction temperature of 150°C and a thermal resistance of 30°C/W. To ensure reliable operation, it is essential to ensure that the device is operated within the recommended temperature range and that adequate heat sinking is provided. This can be achieved by using a heat sink, ensuring good airflow, and minimizing power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7799BRUZ Overview

Use the download button to access the AD7799BRUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD779, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
