AD780CRZ-REEL7 - Analog Devices

Description: Series, Shunt Voltage Reference IC Programmable ±2.5V, ±3V V ±0.06%, ±0.17% 10 mA 8-SOIC

Download AD780CRZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

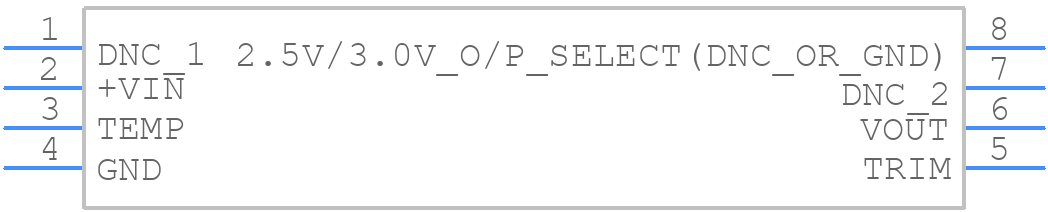

Symbol
