AD7810YNZ - Analog Devices

Description: AD7810YNZ, 10 bit ADC Differential, Serial, 8-Pin PDIP

Download AD7810YNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

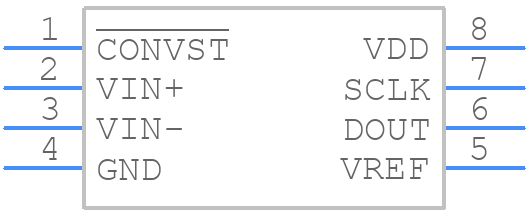

Symbol
AD7810YNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7810YNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-8_2
click to zoom
3D Models
AD7810YNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-8_2
click to zoom

AD7810YNZ Details

  • Manufacturer Part Number:

    AD7810YNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, MINI, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    2.3 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.88 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.35 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7810YNZ Frequently Asked Questions (FAQs)

  • The AD7810YNZ is a sensitive device and requires careful layout and placement to minimize noise and ensure accurate readings. It is recommended to place the device close to the analog signal source, use a ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins to filter out noise.
  • The AD7810YNZ has a power-on reset (POR) and brown-out reset (BOR) feature that resets the device when the power supply voltage falls below a certain threshold. To handle this, ensure that the power supply voltage is stable and within the recommended range. Also, add a capacitor to the VCC pin to filter out noise and prevent false resets.
  • The recommended clock frequency for the AD7810YNZ is between 1 MHz and 4 MHz. A higher clock frequency can improve the device's conversion speed, but it also increases the power consumption and noise sensitivity. A lower clock frequency can reduce power consumption and noise sensitivity, but it may also reduce the conversion speed.
  • The AD7810YNZ requires calibration to ensure accurate readings. The calibration process involves adjusting the device's internal offset and gain to match the specific application requirements. This can be done using the device's built-in calibration registers or through external calibration circuits.
  • The maximum sampling rate of the AD7810YNZ is 100 kSPS. The sampling rate affects the device's performance, as a higher sampling rate can improve the device's ability to capture high-frequency signals, but it also increases the power consumption and noise sensitivity.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

AD7810YNZ Overview

Use the download button to access the AD7810YNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD781, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
