AD7811YRUZ - Analog Devices

Description: AD7811YRUZ, 10 bit ADC Differential, SPI, 16-Pin TSSOP

Download AD7811YRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

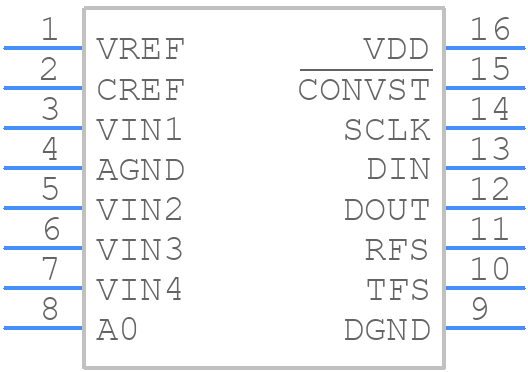

Symbol
AD7811YRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7811YRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP
click to zoom
3D Models
AD7811YRUZ - Analog Devices - 3D model - Small Outline Packages - TSSOP
click to zoom

AD7811YRUZ Details

  • Manufacturer Part Number:

    AD7811YRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3.6 V

  • Conversion Time-Max:

    2.3 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.35 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7811YRUZ Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding scheme, keeping the analog and digital grounds separate, and placing the AD7811YRUZ close to the analog signal sources. Additionally, ensure that the device is placed away from high-frequency noise sources and that the PCB layout is designed to minimize electromagnetic interference (EMI).
  • To ensure accurate temperature measurement, calibrate the internal temperature sensor by comparing it to a known temperature reference point. Additionally, consider using an external temperature sensor with higher accuracy, and implement temperature compensation techniques to minimize errors.
  • The AD7811YRUZ's limited analog input range may require additional signal conditioning or amplification stages to ensure the input signal is within the device's acceptable range. Consider using external amplifiers or attenuators to adjust the signal level, and ensure that the system design takes into account the device's input range limitations.
  • Implement a power-up sequence that allows the AD7811YRUZ to complete its POR and BOR cycles before initiating system operation. Ensure that the system design includes adequate power supply filtering and decoupling to minimize power supply noise and glitches.
  • The AD7811YRUZ's digital output format may require additional processing or formatting to interface with other devices. Consider using a microcontroller or FPGA to process the digital output, or use a dedicated interface IC to convert the output format to match the requirements of the target device.
