AD7812YNZ - Analog Devices

Description: AD7812YNZ, 10 bit ADC Differential, SPI, 20-Pin PDIP

Download AD7812YNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

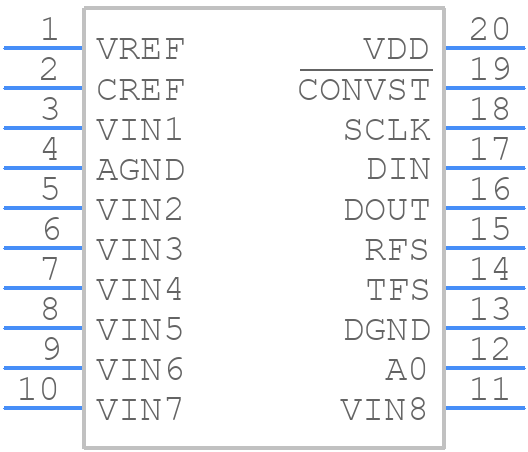

AD7812YNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7812YNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - (N-20)
click to zoom
3D Models
AD7812YNZ - Analog Devices - 3D model - Dual-In-Line Packages - (N-20)
click to zoom

AD7812YNZ Details

  • Manufacturer Part Number:

    AD7812YNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, MINI, PLASTIC, DIP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    N-20

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    3.6 V

  • Conversion Time-Max:

    2.3 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Length:

    25.2 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Number of Analog In Channels:

    8

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.35 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7812YNZ Frequently Asked Questions (FAQs)

  • The AD7812YNZ is a sensitive analog device, and proper layout and placement are crucial to minimize noise and ensure accurate readings. It is recommended to place the device close to the analog signal source, use a ground plane, and keep the analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins to filter out noise.
  • The AD7812YNZ outputs data in a 12-bit, right-justified, twos-complement format. To handle the output data, you need to understand the scaling and offset of the device. The datasheet provides information on the output coding and scaling, and you can use this information to convert the output data to a usable format, such as volts or temperature.
  • The recommended power-up sequence for the AD7812YNZ is to apply the analog power supply (VCC) first, followed by the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent latch-up and ensures proper device operation.
  • The AD7812YNZ does not require calibration, as it is a factory-calibrated device. However, you may need to perform system-level calibration to account for any offsets or gains in your specific application. This can be done by taking readings at known input values and adjusting the output data accordingly.
  • The maximum sampling rate of the AD7812YNZ is 250 kSPS. To achieve this rate, you need to ensure that the device is properly configured, and the clock signal is provided at the correct frequency. Additionally, you need to ensure that the analog input signal is properly filtered and settled before taking a reading.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7812YNZ Overview

Use the download button to access the AD7812YNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD781, or try a keyword search, such as Analog to Digital Converters
