AD7813YNZ - Analog Devices

Description: AD7813YNZ, 10 bit ADC, Parallel, 16-Pin PDIP

Download AD7813YNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

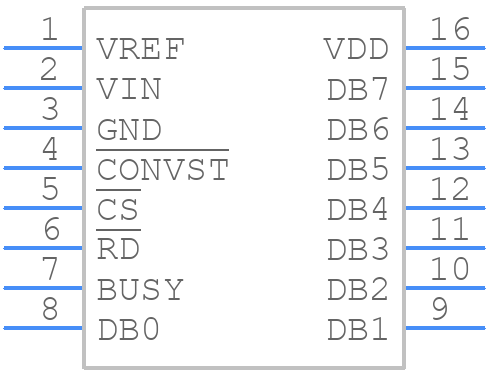

AD7813YNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

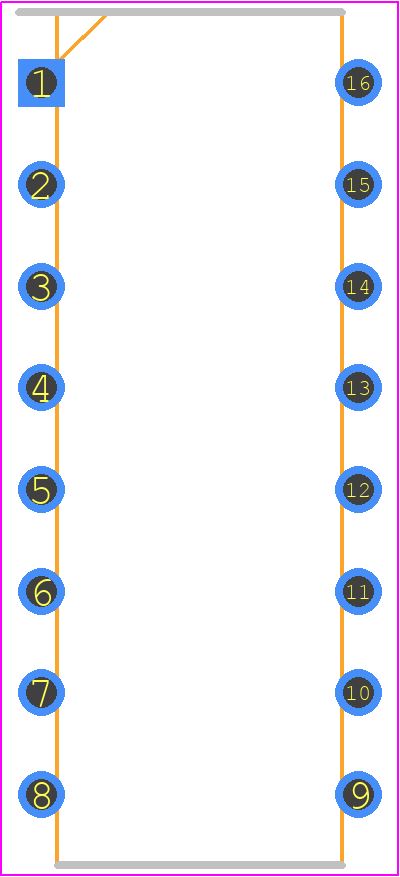

AD7813YNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-16_2020
click to zoom
3D Models
AD7813YNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-16_2020
click to zoom

AD7813YNZ Details

  • Manufacturer Part Number:

    AD7813YNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, PLASTIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3 V

  • Conversion Time-Max:

    2.3 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    20.13 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.4 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7813YNZ Frequently Asked Questions (FAQs)

  • The AD7813YNZ is a sensitive analog device, and its performance can be affected by the PCB layout and component placement. It is recommended to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from noise sources.
  • To minimize noise sensitivity, use a low-pass filter at the input, keep the input traces short and shielded, and use a quiet power supply. Additionally, consider using a ferrite bead or a common-mode choke to filter out high-frequency noise.
  • The AD7813YNZ is rated for operation from -40°C to +125°C, but the device's accuracy and linearity may degrade at extreme temperatures. It is recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance.
  • The AD7813YNZ is not hermetically sealed, and its performance may be affected by high humidity. It is recommended to use a conformal coating or a moisture-resistant package to protect the device in humid environments.
  • The AD7813YNZ has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and adjusting the internal calibration registers to achieve the desired accuracy. Refer to the datasheet for detailed calibration procedures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7813YNZ Overview

Use the download button to access the AD7813YNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD781, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
