AD7813YRUZ - Analog Devices

Description: Analog to Digital Converters - ADC 10 BIT, SINGLE, PARALLEL,ADC I.C.

Download AD7813YRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

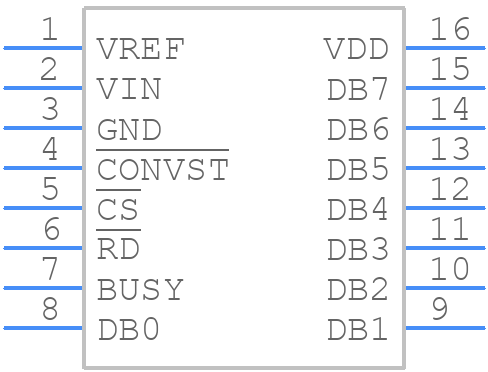

AD7813YRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7813YRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)_1
click to zoom
3D Models
AD7813YRUZ - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)_1
click to zoom

AD7813YRUZ Details

  • Manufacturer Part Number:

    AD7813YRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    1

  • Analog Input Voltage-Max:

    3 V

  • Conversion Time-Max:

    2.3 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.4 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7813YRUZ Frequently Asked Questions (FAQs)

  • The AD7813YRUZ is a sensitive analog device, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and place the device close to the analog signal sources to minimize noise pickup.
  • To ensure accurate temperature measurement, it is essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, the device should be placed in close proximity to the temperature sensor, and the thermal response time should be considered in the system design.
  • The maximum allowable voltage on the analog input pins of the AD7813YRUZ is the supply voltage (VCC) + 0.3V. Exceeding this voltage can cause damage to the device.
  • The AD7813YRUZ can be interfaced with a microcontroller through a serial interface (SPI or I2C). The microcontroller can send commands to the AD7813YRUZ to configure the device, initiate conversions, and read the conversion results. The interface protocol and timing requirements should be carefully considered to ensure reliable communication.
  • The AD7813YRUZ has a power-on reset (POR) circuit that initializes the device to a default state after power-up. The POR circuit ensures that the device is in a known state after power-up, and it is essential to consider this behavior when designing the system power-up sequence.
