AD7817ARZ - Analog Devices

Description: AD7817ARZ, 10 bit ADC SPI, 16-Pin SOIC

Download AD7817ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

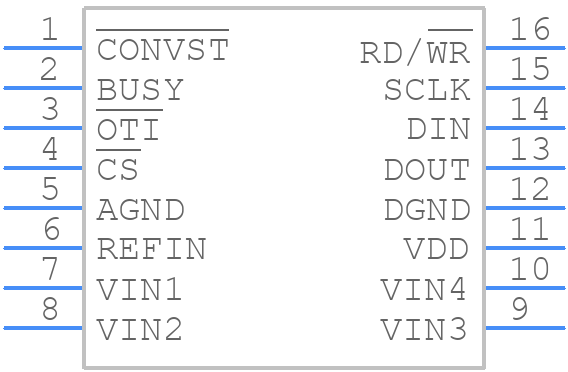

AD7817ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7817ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16 (SOIC)
click to zoom
3D Models
AD7817ARZ - Analog Devices - 3D model - Small Outline Packages - R-16 (SOIC)
click to zoom

AD7817ARZ Details

  • Manufacturer Part Number:

    AD7817ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Accuracy-Max (Cel):

    2 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.55 mm

  • Body Length or Diameter:

    9.9 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    10

  • Number of Terminals:

    16

  • Operating Current-Max:

    2 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    5-WIRE INTERFACE

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

AD7817ARZ Frequently Asked Questions (FAQs)

  • The AD7817ARZ is a sensitive analog device, and proper layout and placement are crucial for optimal performance. It is recommended to keep the device away from high-frequency signals, use a solid ground plane, and minimize the length of analog signal traces.
  • To ensure accurate temperature measurement, it is essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, the device should be placed close to the temperature sensor to minimize thermal resistance.
  • The maximum allowable voltage on the analog input pins of the AD7817ARZ is the supply voltage (VCC) + 0.3V. Exceeding this voltage can cause damage to the device.
  • The AD7817ARZ can be interfaced with a microcontroller using a serial interface (SPI or I2C). The microcontroller can send commands to the AD7817ARZ to configure the device, initiate conversions, and read the conversion results.
  • The power-on reset (POR) timing for the AD7817ARZ is typically around 10ms. This means that the device requires a minimum of 10ms to power up and become operational after power-on.
