AD7819YNZ - Analog Devices

Description: AD7819YNZ, 8 bit ADC, Parallel, 16-Pin PDIP

Download AD7819YNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

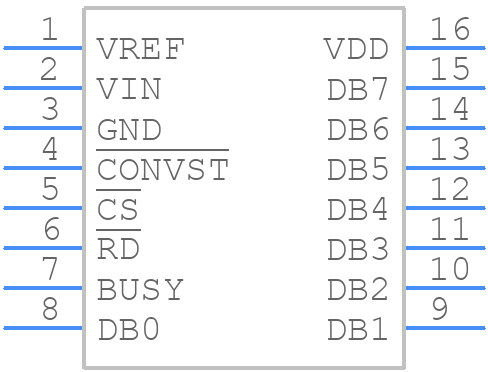

AD7819YNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

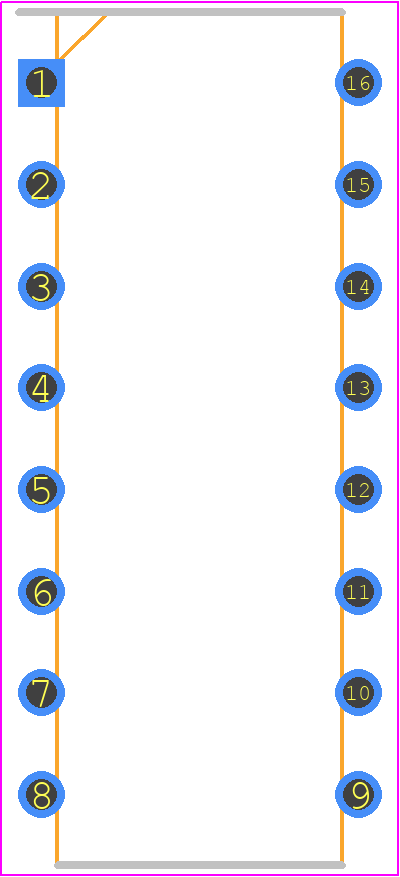

AD7819YNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 16-Pin Plastic DIP
click to zoom
3D Models
AD7819YNZ - Analog Devices - 3D model - Dual-In-Line Packages - 16-Pin Plastic DIP
click to zoom

AD7819YNZ Details

  • Manufacturer Part Number:

    AD7819YNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, PLASTIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3 V

  • Conversion Time-Max:

    4.5 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    20.13 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.2 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7819YNZ Frequently Asked Questions (FAQs)

  • The AD7819YNZ is a sensitive analog device, and proper layout and placement are crucial for optimal performance. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • The AD7819YNZ is a high-resolution ADC, and as such, it is sensitive to noise. To minimize noise, use a low-noise power supply, keep the analog signal paths short, and use shielding or guard rings to reduce electromagnetic interference (EMI). Additionally, consider using a low-pass filter or a ferrite bead to filter out high-frequency noise.
  • The AD7819YNZ has a maximum sampling rate of 250 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the system's clock frequency, the conversion time, and the settling time of the analog signal.
  • The AD7819YNZ has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and adjusting the internal calibration registers to achieve the desired accuracy. The calibration process can be performed using the device's SPI interface.
  • The AD7819YNZ has a typical power consumption of 15 mW at a supply voltage of 3.3 V and a sampling rate of 100 kSPS. However, the actual power consumption may vary depending on the system's clock frequency, the conversion time, and the operating conditions.
