AD7819YRZ-REEL7 - Analog Devices

Description: 1-Channel Single ADC SAR 200ksps 8-bit Parallel 16-Pin SOIC N T/R

Download AD7819YRZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

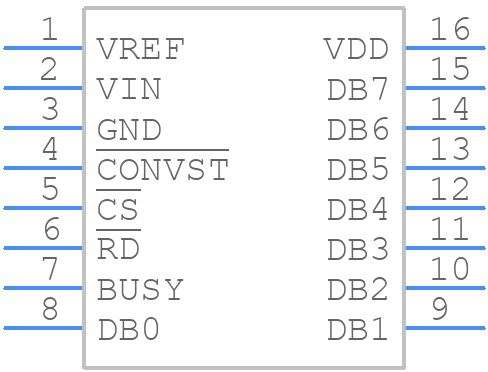

AD7819YRZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7819YRZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16A (SOIC)
click to zoom
3D Models
AD7819YRZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - R-16A (SOIC)
click to zoom

AD7819YRZ-REEL7 Details

  • Manufacturer Part Number:

    AD7819YRZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3 V

  • Conversion Time-Max:

    4.5 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.2 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD7819YRZ-REEL7 Frequently Asked Questions (FAQs)

  • The AD7819YRZ-REEL7 is a sensitive analog device, and proper layout and placement are crucial. It's recommended to keep the device away from high-frequency sources, use a solid ground plane, and minimize trace lengths and widths to reduce noise and parasitic capacitance.
  • The AD7819YRZ-REEL7 has an internal calibration circuit, but it's still important to follow the recommended calibration procedure outlined in the datasheet. Additionally, consider using external calibration resistors and capacitors to improve accuracy and temperature stability.
  • The maximum allowed voltage on the input pins is ±VCC + 0.3V. To protect the device from overvoltage conditions, use voltage-limiting resistors, diodes, or zener diodes to clamp the input voltage to a safe level.
  • The AD7819YRZ-REEL7 has a serial interface that can be connected to a microcontroller or digital signal processor using a SPI or I2C interface. Ensure the interface is properly configured, and use a level shifter if necessary to match the voltage levels.
  • The typical power consumption of the AD7819YRZ-REEL7 is around 350 μA. To reduce power consumption, consider using the device's power-down mode, reducing the sampling rate, or using a lower supply voltage.
