AD7820LNZ - Analog Devices

Description: AD7820LNZ, 8 bit ADC, Parallel, 20-Pin PDIP

Download AD7820LNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

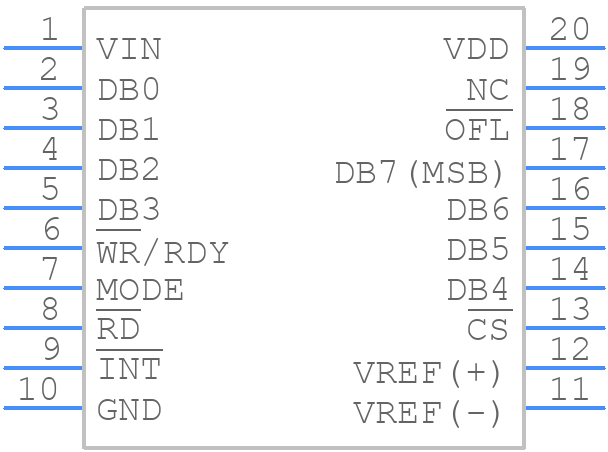

AD7820LNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7820LNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - (N-20)
click to zoom
3D Models
AD7820LNZ - Analog Devices - 3D model - Dual-In-Line Packages - (N-20)
click to zoom

AD7820LNZ Details

  • Manufacturer Part Number:

    AD7820LNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    SKINNY, PLASTIC, DIP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    N-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog Input Voltage-Max:

    7.3 V

  • Analog Input Voltage-Min:

    -0.3 V

  • Conversion Time-Max:

    1.36 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Length:

    25.2 mm

  • Linearity Error-Max (EL):

    0.195%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7820LNZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VREF, and then the digital inputs. This ensures that the internal reference voltage is stable before the analog-to-digital conversion begins.
  • In such cases, it is recommended to use an external voltage limiter or clamp circuit to prevent the input voltage from exceeding the maximum rating. Additionally, consider using a voltage divider or attenuator to reduce the input voltage to within the acceptable range.
  • Clock jitter can affect the AD7820LNZ's performance by introducing noise and reducing the converter's effective resolution. It is recommended to use a low-jitter clock source and to ensure that the clock signal is properly filtered and decoupled to minimize the impact of clock jitter.
  • Yes, the AD7820LNZ can be used in a multiplexed configuration. However, it is essential to ensure that the multiplexer is properly designed and laid out to minimize channel-to-channel crosstalk and noise. Additionally, consider using a dedicated analog input buffer for each channel to improve the overall system performance.
  • To optimize the layout and grounding of the AD7820LNZ, follow proper analog design practices, such as separating analog and digital grounds, using a star-ground configuration, and minimizing the length of analog signal traces. Additionally, consider using a ground plane and shielding to reduce electromagnetic interference (EMI).
