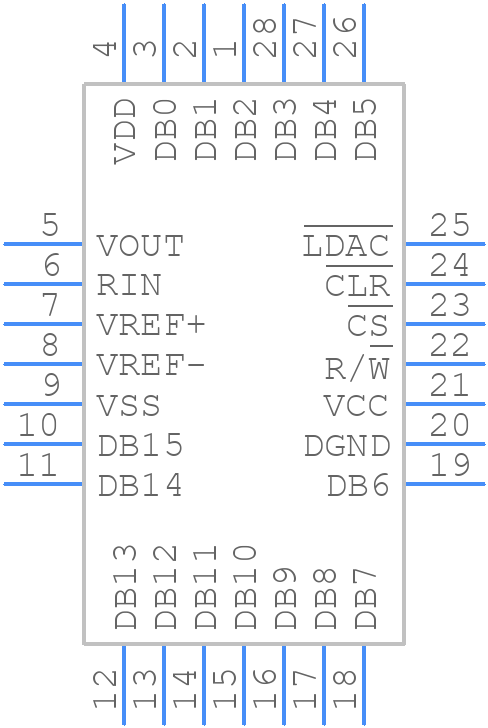

AD7846JPZ - Analog Devices

AD7846JPZ Details

• Manufacturer Part Number:

  AD7846JPZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  LCC

• Package Description:

  LCC-28

• Pin Count:

  28

• Manufacturer Package Code:

  P-28

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Analog Output Voltage-Max:

  10 V

• Analog Output Voltage-Min:

  -10 V

• Converter Type:

  D/A CONVERTER

• Input Bit Code:

  BINARY, OFFSET BINARY

• Input Format:

  PARALLEL, WORD

• JESD-30 Code:

  S-PQCC-J28

• JESD-609 Code:

  e3

• Length:

  11.505 mm

• Linearity Error-Max (EL):

  0.0244%

• Moisture Sensitivity Level:

  5

• Negative Supply Voltage-Nom:

  -15 V

• Number of Bits:

  16

• Number of Functions:

  1

• Number of Terminals:

  28

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC28,.5SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.57 mm

• Settling Time-Max:

  9 µs

• Settling Time-Nom (tstl):

  7 µs

• Supply Voltage-Nom:

  15 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Width:

  11.505 mm
