AD7847ANZ - Analog Devices

Description: AD7847ANZ, 12 bit-Bit DAC Dual, 250ksps, Parallel, 24-Pin PDIP

Download AD7847ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

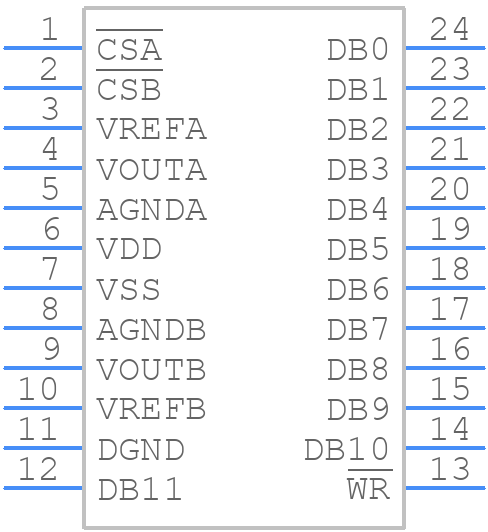

Symbol
AD7847ANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7847ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - (N-24)-+-+-
click to zoom
3D Models
AD7847ANZ - Analog Devices - 3D model - Dual-In-Line Packages - (N-24)-+-+-
click to zoom

AD7847ANZ Details

  • Manufacturer Part Number:

    AD7847ANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, PLASTIC, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N-24-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    31.165 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    12

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.82 mm

  • Settling Time-Nom (tstl):

    3 µs

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7847ANZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signal traces separate and away from each other. Additionally, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the AVCC pin.
  • The AD7847ANZ has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and then reading the output code. The device can then be calibrated by adjusting the internal calibration registers. Refer to the datasheet for the specific calibration procedure.
  • The maximum sampling rate of the AD7847ANZ is 200 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, the conversion time, and the settling time of the input signal.
  • If the AD7847ANZ is not converting correctly or is producing incorrect results, check the power supply voltage, clock frequency, and input signal amplitude and frequency. Ensure that the device is properly calibrated and that the input signal is within the specified range. Also, check for any noise or interference in the system that may be affecting the conversion.
  • Yes, the AD7847ANZ can be used in a multi-channel application. The device has a serial interface that allows multiple devices to be connected to a single microcontroller or DSP. Each device can be addressed individually using the chip select pin.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7847ANZ Overview

Use the download button to access the AD7847ANZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD784, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
