AD7847BNZ - Analog Devices

Description: AD7847BNZ, 12 bit-Bit DAC Dual, 250ksps, Parallel, 24-Pin PDIP

Download AD7847BNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

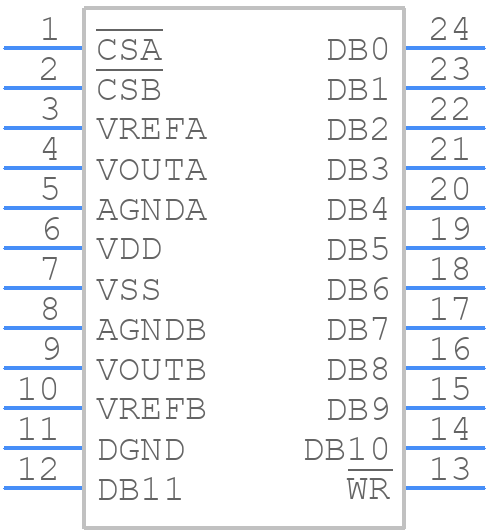

Symbol
AD7847BNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7847BNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-24
click to zoom
3D Models
AD7847BNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-24
click to zoom

AD7847BNZ Details

  • Manufacturer Part Number:

    AD7847BNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, PLASTIC, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N-24-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    31.165 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    12

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.82 mm

  • Settling Time-Nom (tstl):

    3 µs

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7847BNZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signal traces separate and away from each other. Additionally, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the AVCC pin.
  • The AD7847BNZ has an internal calibration circuit that can be enabled by setting the CAL pin high. The device will then perform a self-calibration sequence. It's recommended to perform a calibration cycle after power-up and after any changes to the reference voltage or input range.
  • The recommended power-up sequence is to first apply the analog power supply (AVCC) followed by the digital power supply (VCC). The digital power supply should be applied after the analog power supply has reached its nominal value. This ensures that the internal analog circuits are powered up before the digital circuits.
  • The BUSY signal is an output that indicates when the AD7847BNZ is busy with a conversion. The BUSY signal should be monitored by the microcontroller and conversions should not be initiated until the BUSY signal is low. This ensures that the AD7847BNZ is not interrupted during a conversion, which could result in incorrect data.
  • The recommended method is to use a low-noise, low-impedance reference voltage source, such as a voltage reference IC or a precision voltage divider. The reference input should be decoupled with a 0.1uF capacitor to reduce noise and ensure a stable reference voltage.
