AD7849ANZ - Analog Devices

Description: AD7849ANZ, 14 bit-Bit DAC 143ksps, SPI, 20-Pin PDIP

Download AD7849ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

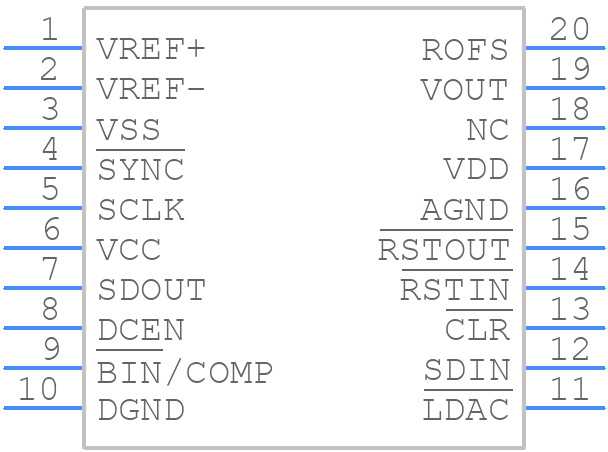

AD7849ANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7849ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - (N-20)
click to zoom
3D Models
AD7849ANZ - Analog Devices - 3D model - Dual-In-Line Packages - (N-20)
click to zoom

AD7849ANZ Details

  • Manufacturer Part Number:

    AD7849ANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    N-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Length:

    25.2 mm

  • Linearity Error-Max (EL):

    0.0183%

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Nom (tstl):

    7 µs

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7849ANZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signals away from the digital signals. Also, use short and direct traces for the analog signals, and avoid crossing digital signals over the analog signals.
  • The AD7849ANZ is a versatile device that can be configured for various applications. For a touch screen or resistive touchscreen, you'll need to set the correct gain, offset, and calibration settings. Refer to the application notes and evaluation boards provided by Analog Devices Inc for specific configuration guidelines.
  • The AD7849ANZ operates from -40°C to +85°C. Temperature affects the device's performance, particularly the accuracy and linearity of the ADC. Ensure proper thermal management and consider the temperature coefficient when designing your system.
  • To minimize EMI and ensure EMC, use proper shielding, grounding, and filtering techniques. Keep the AD7849ANZ away from high-frequency sources, and use a low-pass filter on the analog inputs. Also, follow the recommended layout and routing guidelines to reduce radiation and susceptibility.
  • The recommended power-up sequence is to apply the analog power supply (VCC) first, followed by the digital power supply (VDD). Ensure that the analog power supply is stable before applying the digital power supply. Also, ensure that the reset pin (RST) is properly driven during power-up.
