AD7849CRZ - Analog Devices

Description: AD7849CRZ, 16 bit-Bit DAC 143ksps, SPI, 20-Pin SOIC W

Download AD7849CRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

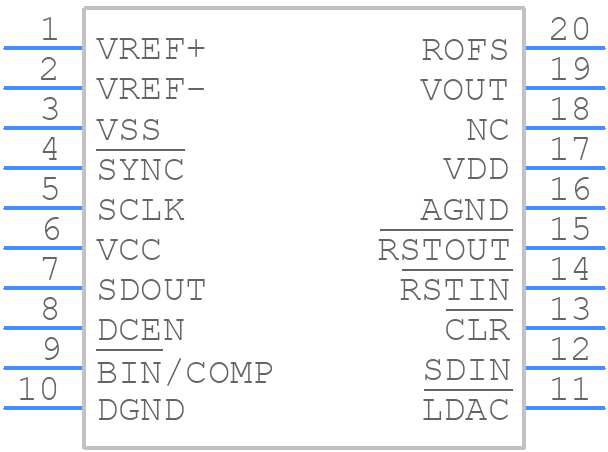

Symbol
AD7849CRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7849CRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-20 (SOIC)
click to zoom
3D Models
AD7849CRZ - Analog Devices - 3D model - Small Outline Packages - RW-20 (SOIC)
click to zoom

AD7849CRZ Details

  • Manufacturer Part Number:

    AD7849CRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RW-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.45

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    MIL-STD-883 Class B (Modified)

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    7 µs

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7849CRZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signal traces separate and away from each other. Additionally, use a low-ESR capacitor for the VDD pin and a 0.1uF capacitor for the AVDD pin.
  • The AD7849CRZ has an internal calibration circuit that can be enabled by setting the CAL pin high. The device will then perform a self-calibration sequence. Additionally, the user can perform an external calibration by applying a known voltage to the input pins and reading the corresponding digital output code.
  • The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures that the analog circuitry is powered up before the digital circuitry, preventing latch-up or other damage.
  • The AD7849CRZ outputs data in a 16-bit twos-complement format. The user should ensure that the digital output data is properly synchronized with the clock signal and that the data is read correctly to avoid errors. Additionally, the user should handle the output data as signed integers to ensure accurate conversions.
  • The maximum sampling rate of the AD7849CRZ is 200 kSPS. The sampling rate affects the conversion accuracy, as higher sampling rates can introduce noise and reduce the accuracy of the conversions. The user should ensure that the sampling rate is within the recommended range and that the input signal is properly filtered to minimize noise and aliasing.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7849CRZ Overview

Use the download button to access the AD7849CRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD784, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
