AD7858LARSZ - Analog Devices

Description: Analog Devices AD7858LARSZ, 12 bit Serial ADC, Differential Input, 24-Pin SSOP

Download AD7858LARSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

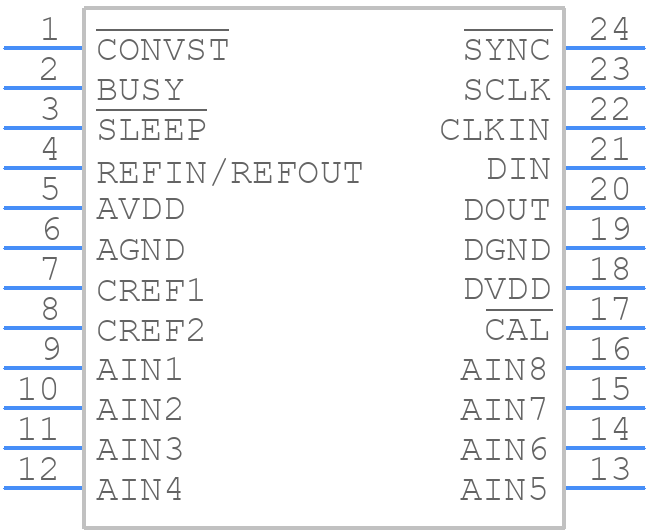

AD7858LARSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7858LARSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RS-24)
click to zoom
3D Models
AD7858LARSZ - Analog Devices - 3D model - Small Outline Packages - (RS-24)
click to zoom

AD7858LARSZ Details

  • Manufacturer Part Number:

    AD7858LARSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RS-24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    18 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.205 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.983 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

AD7858LARSZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital signals separate, use a solid ground plane, and keep the sensitive analog signals away from the digital signals. Also, use short and direct traces for the analog signals, and avoid crossing digital signals over the analog signals.
  • The AD7858LARSZ has an internal calibration circuit that can be used to calibrate the device. However, for optimal performance, it is recommended to perform an external calibration using a known reference voltage and a calibration routine that takes into account the specific application requirements.
  • The maximum sampling rate of the AD7858LARSZ is 200 kSPS. However, the actual sampling rate that can be achieved depends on the clock frequency, the conversion mode, and the interface mode. The device also has a limitation on the minimum conversion time, which can affect the maximum sampling rate.
  • Common error sources include incorrect clock frequency, incorrect voltage supply, incorrect pin connections, and noise on the analog input signals. To troubleshoot, check the device's status register, verify the clock frequency and voltage supply, and ensure that the analog input signals are within the specified range.
  • Yes, the AD7858LARSZ can be used in a multi-channel application. To configure it, use the device's channel select pins to select the desired channel, and use the device's sequencer mode to sequence through the channels. The device can also be used in a pseudo-differential mode to reduce the number of pins required for multi-channel applications.
