AD7862ARSZ-10REEL - Analog Devices

Description: Analog to Digital Converters - ADC DUAL 12-BIT PARALLEL ADC I.C.

Download AD7862ARSZ-10REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

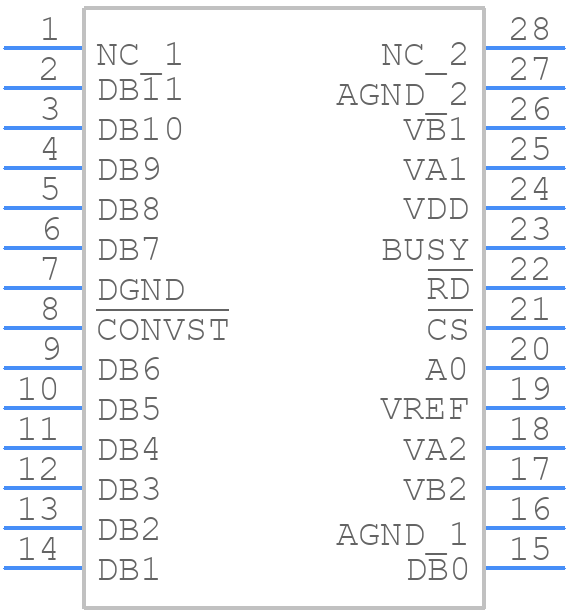

Symbol
AD7862ARSZ-10REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7862ARSZ-10REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-28 (SSOP)_1
click to zoom
3D Models
AD7862ARSZ-10REEL - Analog Devices - 3D model - Small Outline Packages - RS-28 (SSOP)_1
click to zoom

AD7862ARSZ-10REEL Details

  • Manufacturer Part Number:

    AD7862ARSZ-10REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    3.6 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.25 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

AD7862ARSZ-10REEL Frequently Asked Questions (FAQs)

  • Analog Devices provides a layout and routing guide in the AD7862 datasheet, which recommends keeping the analog and digital grounds separate, using a solid ground plane, and minimizing track lengths and widths to reduce noise and parasitic capacitance.
  • The AD7862ARSZ-10REEL has an internal calibration circuit that can be used to calibrate the device. Additionally, Analog Devices provides a calibration procedure in the datasheet, which involves applying a known input voltage and adjusting the offset and gain registers to achieve the desired accuracy.
  • The maximum sampling rate of the AD7862ARSZ-10REEL is 200 kSPS, and it can be achieved by using the internal clock or an external clock source. The power consumption of the device increases with the sampling rate, and Analog Devices provides a power consumption vs. sampling rate graph in the datasheet to help designers estimate the power requirements for their specific application.
  • The AD7862ARSZ-10REEL has a serial interface that can be used to communicate with a microcontroller or FPGA. The recommended communication protocols are SPI or QSPI, and Analog Devices provides example code and interface diagrams in the datasheet to help designers implement the interface.
  • The AD7862ARSZ-10REEL has a maximum junction temperature of 150°C, and it is recommended to keep the device temperature below 125°C to ensure reliable operation. Thermal management considerations include using a heat sink, reducing power consumption, and ensuring good airflow around the device.
