AD7862ARSZ-2 - Analog Devices

Description: Analog Devices AD7862ARSZ-2, 12 bit Parallel ADC, Dual, 28-Pin SSOP

Download AD7862ARSZ-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

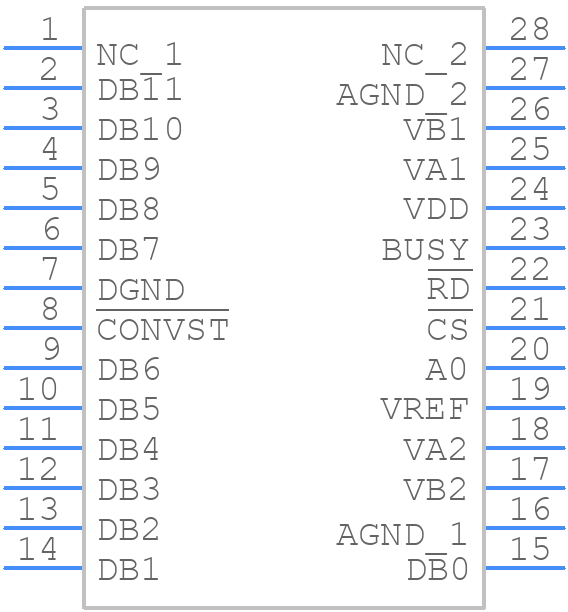

AD7862ARSZ-2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7862ARSZ-2 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-28 (SSOP)_1
click to zoom
3D Models
AD7862ARSZ-2 - Analog Devices - 3D model - Small Outline Packages - RS-28 (SSOP)_1
click to zoom

AD7862ARSZ-2 Details

  • Manufacturer Part Number:

    AD7862ARSZ-2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Conversion Time-Max:

    3.6 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.25 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

AD7862ARSZ-2 Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD7862ARSZ-2 involves keeping the analog and digital sections separate, using a ground plane, and minimizing track lengths and widths. It's also recommended to use a single-point ground and to avoid running digital tracks near the analog inputs.
  • The AD7862ARSZ-2 requires a specific power-up and power-down sequencing to prevent damage or incorrect operation. The recommended sequence is to power up the analog supply (VCC) first, followed by the digital supply (VDD), and then the clock signal. During power-down, the sequence should be reversed.
  • The maximum clock frequency for the AD7862ARSZ-2 is 2.5 MHz. Using a higher clock frequency can result in increased power consumption, reduced accuracy, and potential instability. It's recommended to use a clock frequency that is within the specified range to ensure optimal performance.
  • The AD7862ARSZ-2 can be calibrated using an internal calibration mode or an external calibration signal. The internal calibration mode uses an on-chip calibration voltage reference, while the external calibration mode uses an external voltage reference. The calibration options available include offset calibration, gain calibration, and linearity calibration.
  • The AD7862ARSZ-2 is sensitive to temperature changes, which can affect its accuracy and linearity. Temperature-related errors can be compensated for using external temperature sensors and calibration techniques. It's also recommended to use a temperature-stable voltage reference and to minimize thermal gradients on the PCB.
