AD7863BRZ-10 - Analog Devices

Description: AD7863BRZ-10, 14 bit ADC Dual,, Parallel, 28-Pin SOIC W

Download AD7863BRZ-10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

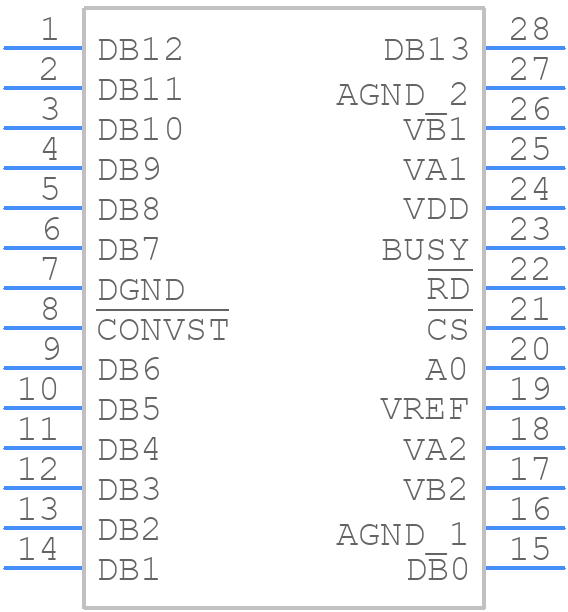

AD7863BRZ-10 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7863BRZ-10 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-28 (SOIC)
click to zoom
3D Models
AD7863BRZ-10 - Analog Devices - 3D model - Small Outline Packages - RW-28 (SOIC)
click to zoom

AD7863BRZ-10 Details

  • Manufacturer Part Number:

    AD7863BRZ-10

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, MS-013AE, SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RW-28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    5.2 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.175 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    11 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7863BRZ-10 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, keep the input signals away from the digital signals and use shielding if possible.
  • The AD7863BRZ-10 has an internal calibration circuit that can be initiated by setting the CAL pin high. The calibration procedure involves shorting the input pins to ground and then to the reference voltage, and then reading the output codes to determine the gain and offset errors.
  • The AD7863BRZ-10 has a maximum junction temperature of 150°C. Ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Also, ensure the device is operated within the recommended temperature range of -40°C to 85°C.
  • Handle the AD7863BRZ-10 with an anti-static wrist strap or mat, and avoid touching the pins or exposing the device to electrostatic discharge. Use ESD-protected packaging and storage, and follow proper handling procedures to prevent damage.
  • The AD7863BRZ-10 requires a specific power sequencing to prevent latch-up and ensure proper operation. Ensure that the analog supply (VCC) is powered up before the digital supply (VDD), and that the digital supply is powered down before the analog supply.
