AD7872ANZ - Analog Devices

Description: Analog Devices AD7872ANZ, 14-bit Serial ADC, 16-Pin PDIP

Download AD7872ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

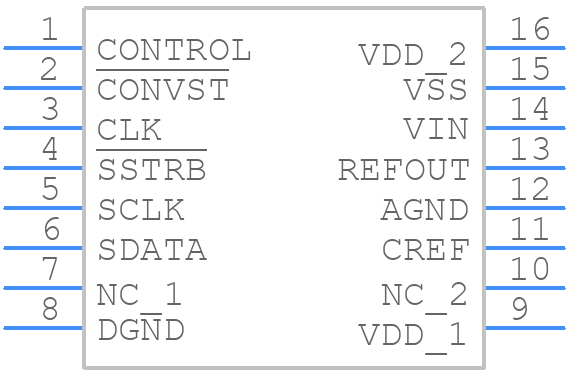

AD7872ANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7872ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-16_2022
click to zoom
3D Models
AD7872ANZ - Analog Devices - 3D model - Dual-In-Line Packages - N-16_2022
click to zoom

AD7872ANZ Details

  • Manufacturer Part Number:

    AD7872ANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3 V

  • Analog Input Voltage-Min:

    -3 V

  • Conversion Time-Max:

    10.5 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    19.055 mm

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL, PARALLEL, 8 BITS, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.083 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    4.32 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7872ANZ Frequently Asked Questions (FAQs)

  • The AD7872ANZ is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep the analog and digital grounds separate, and place the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed as close as possible to the ADC's power pins.
  • The AD7872ANZ has an internal calibration mechanism that can be initiated through the CAL pin. The calibration process involves shorting the CAL pin to the digital ground, which triggers the ADC to perform a self-calibration routine. The calibration data is then stored in the ADC's internal registers. It is recommended to perform calibration after power-up and whenever the ADC's operating conditions change.
  • The maximum sampling rate of the AD7872ANZ is 125 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the system's clock frequency, the ADC's conversion time, and the interface protocol used to communicate with the ADC.
  • The AD7872ANZ is specified to operate from a 2.7V to 5.5V supply voltage. However, the ADC's performance may be affected at higher supply voltages. It is recommended to operate the ADC at a supply voltage of 3.3V or lower to ensure optimal performance and minimize power consumption.
  • The AD7872ANZ has a serial interface that can be connected to a microcontroller's SPI or I2C interface. The ADC's interface protocol is compatible with most microcontrollers, and the communication protocol can be configured through the ADC's control registers. It is recommended to consult the microcontroller's datasheet and the AD7872ANZ's datasheet for specific interface requirements and configuration details.
