AD7873ARQZ - Analog Devices

Description: AD7873ARQZ, Touch Screen Digitizer, 12bit- 125ksps, 16-Pin QSOP

Download AD7873ARQZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

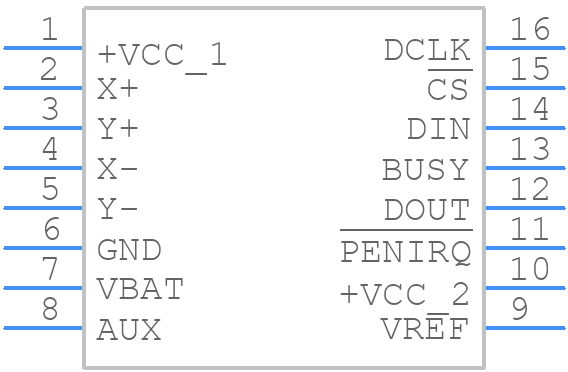

AD7873ARQZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7873ARQZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD7873ARQZ
click to zoom
3D Models
AD7873ARQZ - Analog Devices - 3D model - Small Outline Packages - AD7873ARQZ
click to zoom

AD7873ARQZ Details

  • Manufacturer Part Number:

    AD7873ARQZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    0.150 INCH, ROHS COMPLIANT, MO-137AB, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RQ-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    FUNCTIONALLY IT OPERATES FROM 2.2 TO 5.25V

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9022 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.7526 mm

  • Supply Current-Max:

    0.38 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9116 mm

AD7873ARQZ Frequently Asked Questions (FAQs)

  • The AD7873ARQZ requires careful layout and placement to minimize noise and ensure accurate conversions. A recommended layout is to place the AD7873ARQZ close to the analog signal sources, use a ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device.
  • To optimize the AD7873ARQZ for low power consumption, use the lowest possible clock frequency, disable the internal reference, and use the power-down mode when not converting. Additionally, consider using a lower voltage supply and reducing the analog input range.
  • The AD7873ARQZ requires a two-point calibration procedure to ensure accurate conversions. The recommended procedure involves applying a known voltage to the analog input and adjusting the offset and gain registers to achieve the desired accuracy.
  • To handle EMI with the AD7873ARQZ, use shielding, filtering, and grounding techniques. Ensure that the device is placed in a shielded enclosure, use EMI filters on the analog inputs, and connect the analog ground to the digital ground.
  • The maximum conversion rate of the AD7873ARQZ is 250 kSPS (kilosamples per second) for 12-bit mode and 125 kSPS for 14-bit mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7873ARQZ Overview

Use the download button to access the AD7873ARQZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD787, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
