AD7874ANZ - Analog Devices

Description: 12bit A-D converter,AD7874AN DIL28 29kHz AD7874ANZ, 12 bit ADC, Parallel, 28-Pin PDIP W

Download AD7874ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

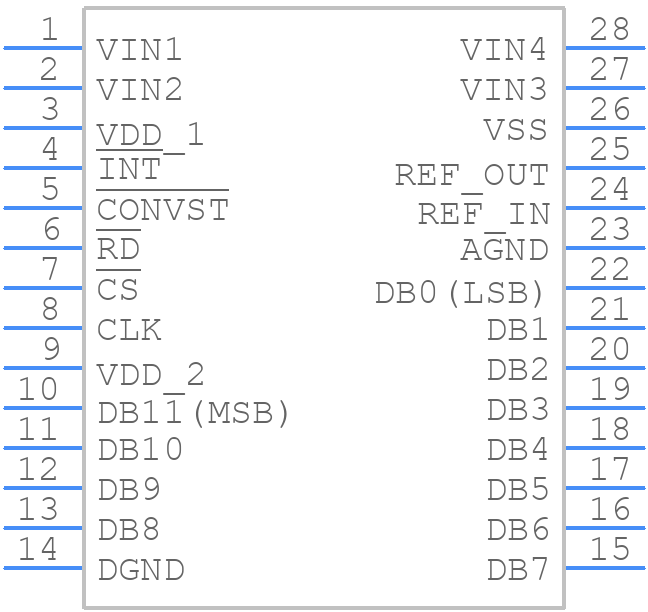

AD7874ANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

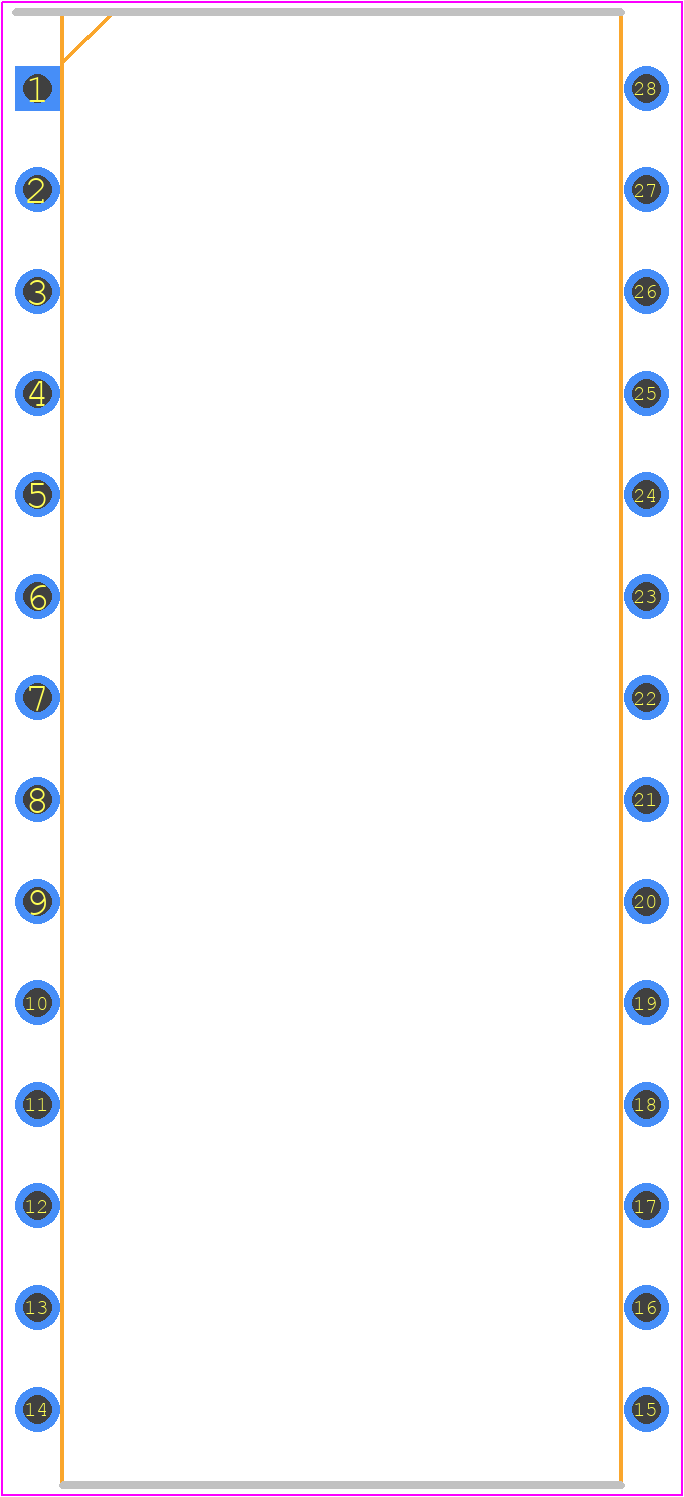

AD7874ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-28-3
click to zoom
3D Models
AD7874ANZ - Analog Devices - 3D model - Dual-In-Line Packages - N-28-3
click to zoom

AD7874ANZ Details

  • Manufacturer Part Number:

    AD7874ANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    0.600 INCH, PLASTIC, DIP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    N-28-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    35 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T28

  • JESD-609 Code:

    e3

  • Length:

    37.4 mm

  • Linearity Error-Max (EL):

    0.024%

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    4

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.029 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    6.35 mm

  • Supply Current-Max:

    18 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm

AD7874ANZ Frequently Asked Questions (FAQs)

  • The AD7874ANZ requires careful layout and placement to minimize noise and ensure accurate conversions. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, the device should be placed away from high-frequency sources and switching regulators.
  • To optimize the AD7874ANZ for low-power operation, it is recommended to use the lowest possible clock frequency, disable the internal reference, and use the power-down mode when not converting. Additionally, the device can be operated in a duty-cycled mode to reduce power consumption.
  • The AD7874ANZ requires a two-point calibration procedure to ensure accurate conversions. The device should be calibrated at two known input voltages, and the resulting output codes should be used to calculate the gain and offset coefficients. These coefficients can then be used to correct for any errors in the conversion process.
  • The AD7874ANZ has built-in overvoltage and undervoltage protection, but it is still important to take precautions to prevent damage to the device. It is recommended to use external voltage limiting circuits and to ensure that the input voltage does not exceed the maximum rating of the device.
  • The AD7874ANZ uses a standard SPI interface protocol, with a maximum clock frequency of 2 MHz. The device requires a minimum of 16 clock cycles to complete a conversion, and the interface protocol should be designed to accommodate this requirement.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7874ANZ Overview

Use the download button to access the AD7874ANZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD787, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
