AD7875KPZ-REEL - Analog Devices

AD7875KPZ-REEL Details

• Manufacturer Part Number:

  AD7875KPZ-REEL

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

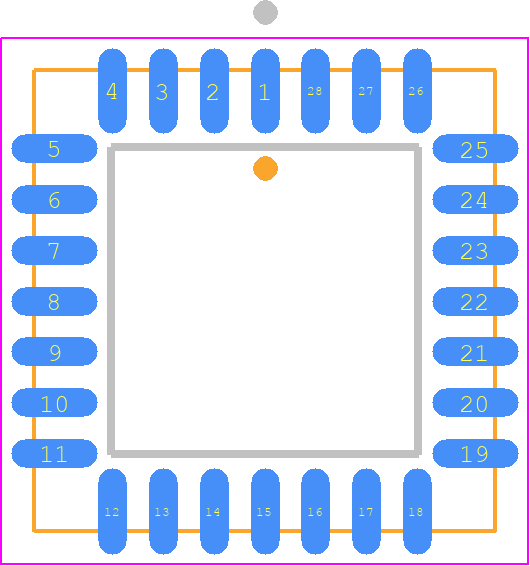

• Part Package Code:

  LCC

• Package Description:

  ROHS COMPLIANT, PLASTIC, MO-047AB, LCC-28

• Pin Count:

  28

• Manufacturer Package Code:

  P-28A

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Analog Input Voltage-Max:

  5 V

• Conversion Time-Max:

  9 µs

• Converter Type:

  ADC, SUCCESSIVE APPROXIMATION

• JESD-30 Code:

  S-PQCC-J28

• JESD-609 Code:

  e3

• Length:

  11.5062 mm

• Linearity Error-Max (EL):

  0.0244%

• Moisture Sensitivity Level:

  3

• Negative Supply Voltage-Nom:

  -5 V

• Number of Analog In Channels:

  1

• Number of Bits:

  12

• Number of Functions:

  1

• Number of Terminals:

  28

• Operating Temperature-Max:

  70 °C

• Output Bit Code:

  BINARY, 2S COMPLEMENT BINARY

• Output Format:

  SERIAL, PARALLEL, 8 BITS, PARALLEL, WORD

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC28,.5SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Sample Rate:

  0.1 MHz

• Sample and Hold / Track and Hold:

  TRACK

• Seated Height-Max:

  4.57 mm

• Supply Current-Max:

  13 mA

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Width:

  11.5062 mm
