AD7875KRZ - Analog Devices

Description: Analog to Digital Converters - ADC 12-BIT SAMPLING SOIC

Download AD7875KRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

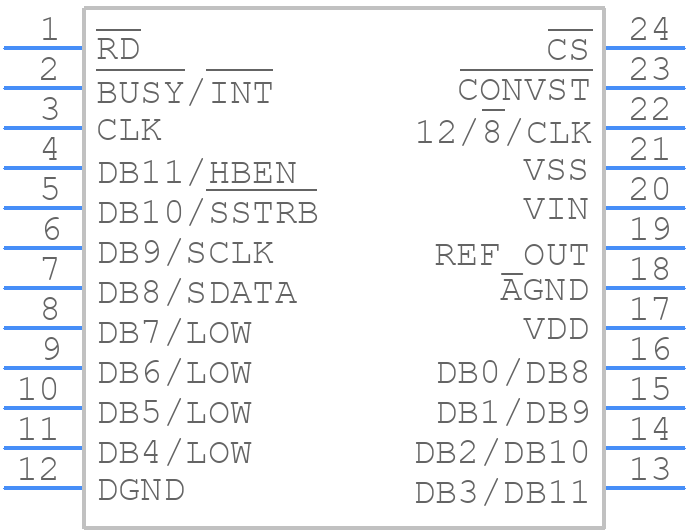

Symbol
AD7875KRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7875KRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-24 (SOIC)
click to zoom
3D Models
AD7875KRZ - Analog Devices - 3D model - Small Outline Packages - RW-24 (SOIC)
click to zoom

AD7875KRZ Details

  • Manufacturer Part Number:

    AD7875KRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Conversion Time-Max:

    9 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL, PARALLEL, 8 BITS, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD7875KRZ Frequently Asked Questions (FAQs)

  • The AD7875KRZ requires careful layout and placement to minimize noise and ensure accurate conversions. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, the device's analog and digital power supplies should be decoupled with 10uF and 100nF capacitors, respectively.
  • To optimize the AD7875KRZ's performance, it is essential to understand the specific requirements of your application. This includes selecting the appropriate gain setting, filter configuration, and sampling rate. Additionally, the device's internal reference voltage can be adjusted to optimize performance for your specific application. Consult the datasheet and application notes for more information.
  • The AD7875KRZ's internal reference voltage has a typical tolerance of ±1.5% and a temperature coefficient of 20ppm/°C. This means that the reference voltage may vary slightly over temperature, which can affect the accuracy of the ADC conversions. If high accuracy is required, an external reference voltage may be necessary.
  • The AD7875KRZ has a standard SPI-compatible interface that can be easily interfaced with most microcontrollers or FPGAs. The device requires a 3-wire interface (SCLK, DIN, and DOUT) and operates in slave mode. Consult the datasheet and application notes for more information on interfacing the AD7875KRZ with your specific microcontroller or FPGA.
  • The AD7875KRZ has a typical power consumption of 15mW at 3V and 1.5mW in power-down mode. The device has three power-down modes: full power-down, partial power-down, and standby mode. These modes can be controlled through the device's SPI interface, allowing for power optimization in battery-powered applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7875KRZ Overview

Use the download button to access the AD7875KRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD787, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
