AD7877ACPZ-500RL7 - Analog Devices

Description: Analog Devices AD7877ACPZ-500RL7, 12 bit Serial ADC,, 32-Pin LFCSP VQ

Download AD7877ACPZ-500RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

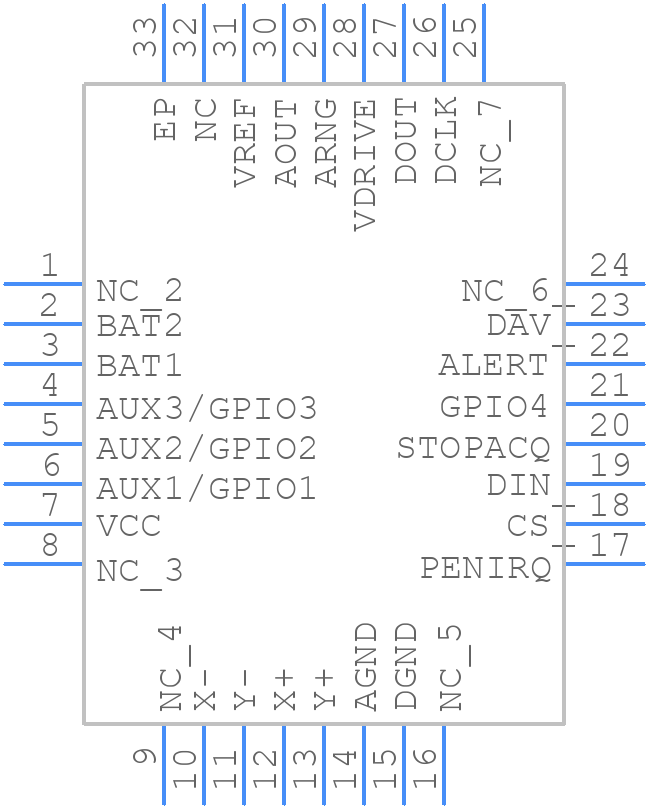

AD7877ACPZ-500RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7877ACPZ-500RL7 - Analog Devices PCB footprint - Other - Other - QFN50P500X500X100-33N
click to zoom
3D Models
AD7877ACPZ-500RL7 - Analog Devices - 3D model - Other - QFN50P500X500X100-33N
click to zoom

AD7877ACPZ-500RL7 Details

  • Manufacturer Part Number:

    AD7877ACPZ-500RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    FUNCTIONALLY IT OPERATES FROM 2.2 TO 5.25V

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD7877ACPZ-500RL7 Frequently Asked Questions (FAQs)

  • The AD7877ACPZ-500RL7 requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
  • The AD7877ACPZ-500RL7 requires calibration to achieve optimal accuracy and linearity. The calibration process involves adjusting the internal offset and gain registers to compensate for device variations and external component tolerances. The calibration procedure is described in the datasheet and application notes.
  • The recommended power-up sequence for the AD7877ACPZ-500RL7 is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This sequence helps prevent damage or malfunction due to incorrect power-up sequencing.
  • The AD7877ACPZ-500RL7's digital output data requires proper handling to ensure accurate and reliable conversion results. This includes using a suitable interface protocol (e.g., SPI or I2C), handling data formatting and byte ordering, and implementing error detection and correction mechanisms.
  • The AD7877ACPZ-500RL7 requires proper thermal management to prevent overheating and ensure reliability. This includes providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

AD7877ACPZ-500RL7 Overview

Use the download button to access the AD7877ACPZ-500RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD787, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
