AD7880BNZ - Analog Devices

Description: AD7880BNZ, Audio ADC 12 bit-, 66ksps, 24-Pin PDIP

Download AD7880BNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

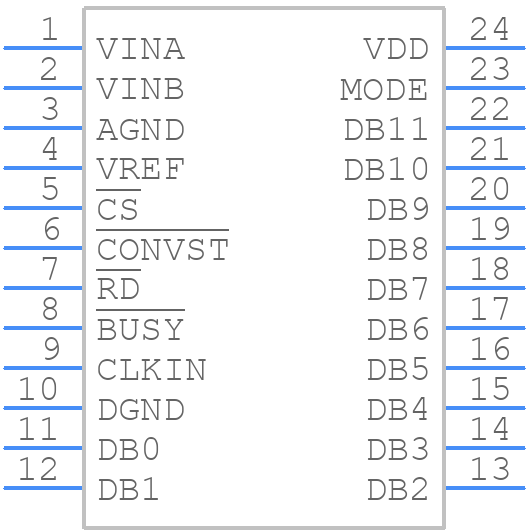

AD7880BNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7880BNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - (N-24)
click to zoom
3D Models
AD7880BNZ - Analog Devices - 3D model - Dual-In-Line Packages - (N-24)
click to zoom

AD7880BNZ Details

  • Manufacturer Part Number:

    AD7880BNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, PLASTIC, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N-24-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Analog Input Voltage-Min:

    -5 V

  • Conversion Time-Max:

    12 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    30.485 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.066 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7880BNZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital sections separate, use a ground plane, and keep the analog input traces short and away from digital traces. Also, use a low-impedance source for the reference voltage and decouple it with a capacitor.
  • The AD7880BNZ has an internal calibration circuit that can be used to calibrate the device. The calibration process involves writing a specific code to the calibration register and then reading back the calibration data. The datasheet provides more details on the calibration procedure.
  • The maximum sampling rate of the AD7880BNZ is 125 kSPS. The power consumption increases with the sampling rate, so it's essential to consider the trade-off between sampling rate and power consumption in the system design.
  • The AD7880BNZ has internal overvoltage protection on the analog input pins, which can withstand voltages up to ±16.5 V. However, it's still recommended to use external protection circuitry, such as voltage-limiting resistors or diodes, to prevent damage to the device.
  • Yes, the AD7880BNZ can be used in a multiplexed configuration. The device has a separate analog input pin for each channel, and the channel selection is done through the control register. The datasheet provides more information on how to configure the device for multiplexed operation.
