AD7880CRZ - Analog Devices

Description: AD7880CRZ, 12 bit ADC, Parallel, 24-Pin SOIC W

Download AD7880CRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

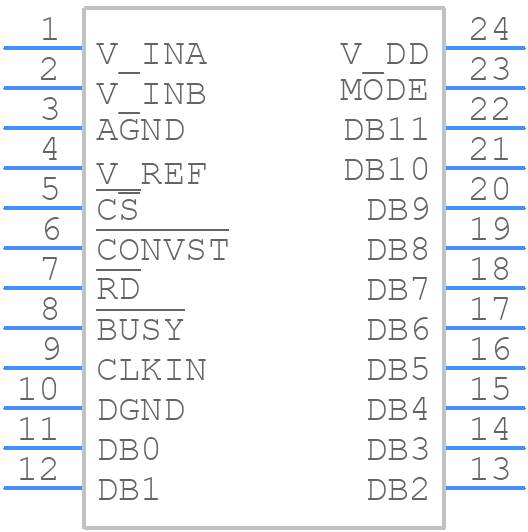

AD7880CRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7880CRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-24
click to zoom
3D Models
AD7880CRZ - Analog Devices - 3D model - Small Outline Packages - R-24
click to zoom

AD7880CRZ Details

  • Manufacturer Part Number:

    AD7880CRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5 V

  • Analog Input Voltage-Min:

    -5 V

  • Conversion Time-Max:

    12 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.066 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.5 mm

AD7880CRZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital signals separate, use a solid ground plane, and keep the sensitive analog signals away from the digital signals. Also, use short and direct connections to the analog input pins and decouple the power supply pins with capacitors.
  • The AD7880CRZ has an internal calibration circuit that can be used to calibrate the device. The calibration process involves writing a specific code to the calibration register and then reading back the calibration data. The datasheet provides more details on the calibration process.
  • The maximum sampling rate of the AD7880CRZ is 125 kSPS (kilo-samples per second). However, the actual sampling rate may be limited by the system clock frequency, the conversion mode, and the interface mode.
  • Yes, the AD7880CRZ can be used in a multi-channel application. The device has a sequencer that allows it to sequence through multiple channels. The sequencer can be programmed to sequence through up to 16 channels.
  • The AD7880CRZ has internal overvoltage protection on the analog input pins. However, it is still recommended to use external protection circuitry, such as voltage limiting resistors and diodes, to prevent damage to the device in case of overvoltage conditions.
