AD7884APZ footprint, schematic symbol and 3D model by Analog Devices

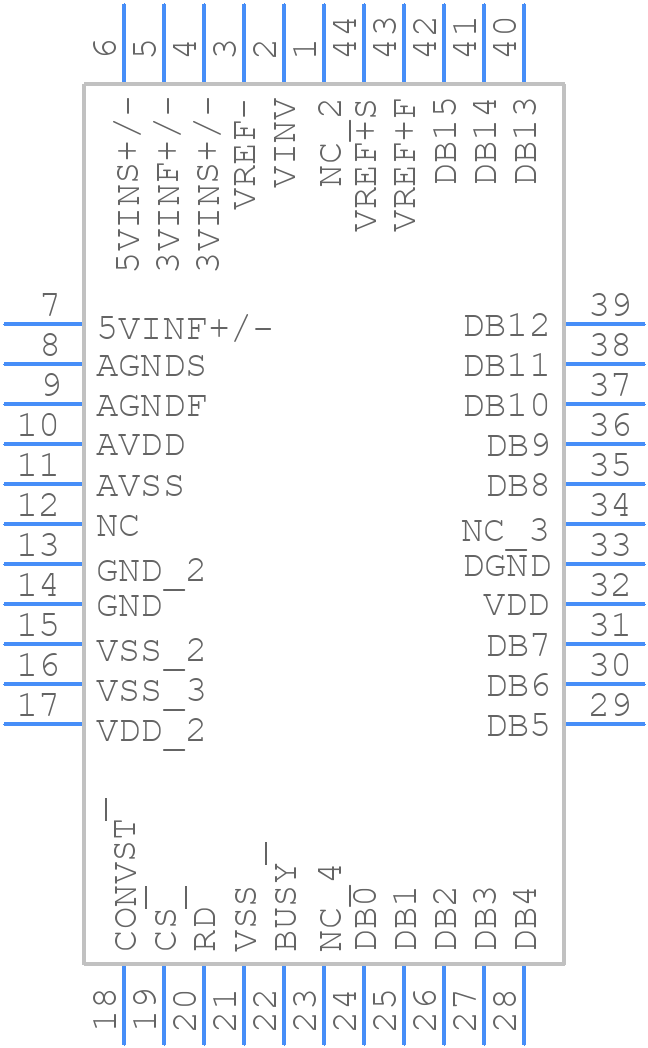

Symbol

click to zoom

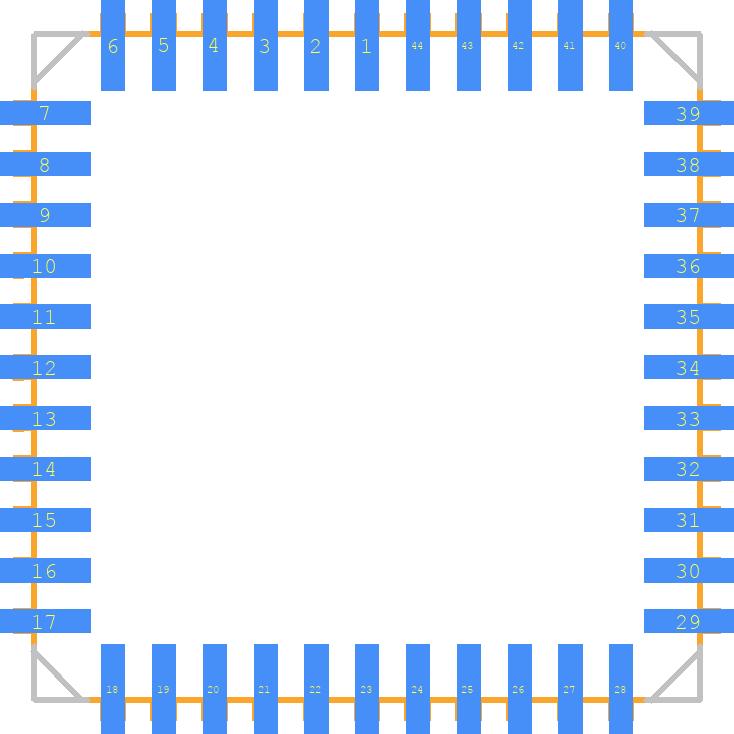

PCB Footprints

AD7884APZ - Analog Devices PCB footprint - Other - Other - PLCC127P1752X1752X457-44N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD7884APZ
Part Number AD7884APZ
Manufacturer Analog Devices
Pin Count 44
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - PLCC127P1752X1752X457-44N
Released Date Jan 10, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

AD7884APZ Details

Manufacturer Part Number:
AD7884APZ
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
LCC
Package Description:
PLASTIC, LCC-44
Pin Count:
44
Manufacturer Package Code:
P-44A
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Analog Input Voltage-Max:
5 V
Analog Input Voltage-Min:
-5 V
Conversion Time-Max:
5.3 µs
Converter Type:
ADC, FLASH METHOD
JESD-30 Code:
S-PQCC-J44
JESD-609 Code:
e3
Length:
16.5862 mm
Linearity Error-Max (EL):
0.0075%
Moisture Sensitivity Level:
3
Negative Supply Voltage-Nom:
-5 V
Number of Analog In Channels:
2
Number of Bits:
16
Number of Functions:
1
Number of Terminals:
44
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Bit Code:
2S COMPLEMENT BINARY
Output Format:
PARALLEL, WORD
Package Body Material:
PLASTIC/EPOXY
Package Code:
QCCJ
Package Shape:
SQUARE
Package Style:
CHIP CARRIER
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Sample Rate:
0.166 MHz
Sample and Hold / Track and Hold:
SAMPLE
Seated Height-Max:
4.57 mm
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
J BEND
Terminal Pitch:
1.27 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
16.5862 mm

AD7884APZ Frequently Asked Questions (FAQs)

A good layout and routing practice for the AD7884APZ involves separating the analog and digital sections, using a ground plane, and keeping the analog input traces short and shielded. Additionally, the reference voltage pin should be connected to a low-noise, low-impedance source, and the digital output traces should be kept away from the analog input traces.
The AD7884APZ has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage to the device and then reading the output code. The device can then be calibrated by adjusting the internal offset and gain registers. It is recommended to perform calibration at multiple temperatures and input voltages to ensure accurate conversions over the entire operating range.
The maximum sampling rate of the AD7884APZ is 125 kSPS. However, the actual sampling rate that can be achieved depends on the clock frequency, the conversion mode, and the interface mode. Increasing the sampling rate will increase the power consumption of the device. It is recommended to consult the datasheet and the application notes for more information on the sampling rate and power consumption trade-offs.
If the AD7884APZ is not converting the input signal correctly, it is recommended to check the input signal range, the reference voltage, and the clock frequency. Common error sources include incorrect input signal levels, noise on the reference voltage, and clock jitter. It is also recommended to check the device's internal registers and flags to identify any errors or exceptions. Consult the datasheet and the application notes for more information on troubleshooting and error handling.
Yes, the AD7884APZ can be used in a multi-channel application. The device has a built-in multiplexer that allows it to convert multiple input channels. To configure the device for multi-channel operation, the user needs to configure the multiplexer control register to select the desired input channel. The device can then be configured to convert the selected channel, and the output data can be read through the digital interface.

Trust Checks

System Verified

AD7884APZ Overview

Use the download button to access the AD7884APZ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like AD788, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
