AD7888ARZ-REEL7 - Analog Devices

Description: Analog to Digital Converters - ADC 8CH. 12-BIT MICROPOWER SERIAL ADC I.C.

Download AD7888ARZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

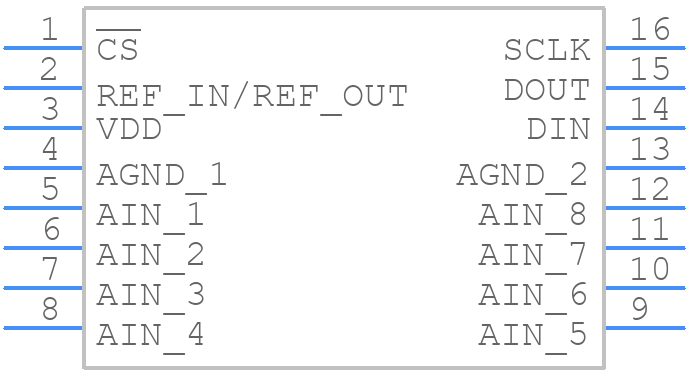

AD7888ARZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7888ARZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16 (SOIC)
click to zoom
3D Models
AD7888ARZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - R-16 (SOIC)
click to zoom

AD7888ARZ-REEL7 Details

  • Manufacturer Part Number:

    AD7888ARZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    7.25 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.125 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.7 mA

  • Supply Voltage-Nom:

    0.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD7888ARZ-REEL7 Frequently Asked Questions (FAQs)

  • The AD7888ARZ-REEL7 is a sensitive analog device, and proper layout and placement are crucial. It's recommended to keep the device away from high-frequency sources, use a solid ground plane, and keep analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device to minimize noise.
  • To ensure accurate temperature measurement, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients. Additionally, the device should be placed close to the temperature sensor, and the sensor should be thermally connected to the device.
  • The recommended power-up sequence for the AD7888ARZ-REEL7 is to apply the analog supply voltage (VCC) first, followed by the digital supply voltage (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, preventing any potential damage or malfunction.
  • The AD7888ARZ-REEL7 has a programmable analog input range, and proper scaling is crucial for accurate measurements. The input range should be set based on the expected signal amplitude, and the gain should be adjusted accordingly. Additionally, the device's internal reference voltage should be used to ensure accurate scaling.
  • When using the AD7888ARZ-REEL7, it's essential to consider EMI and EMC to ensure reliable operation. This includes using shielding, filtering, and grounding techniques to minimize electromagnetic radiation and susceptibility. Additionally, the device should be placed in a shielded enclosure, and cables should be properly routed and terminated.
