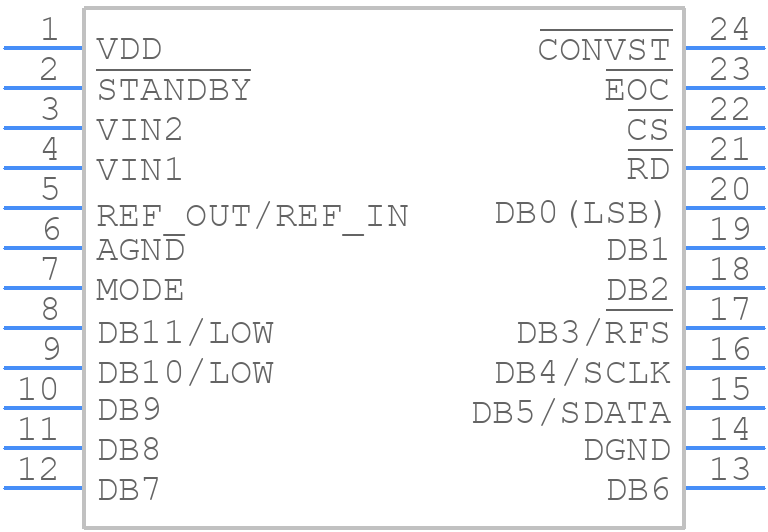

AD7892ARZ-2 - Analog Devices

AD7892ARZ-2 Frequently Asked Questions (FAQs)

• What is the recommended layout and placement for the AD7892ARZ-2 to minimize noise and ensure optimal performance?
  The AD7892ARZ-2 is a high-speed, high-precision ADC, and as such, it requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog input traces as short as possible. Additionally, it is recommended to place the ADC close to the analog signal source and use shielding to minimize electromagnetic interference (EMI).
• How do I handle the clock signal for the AD7892ARZ-2, and what are the requirements for the clock source?
  The AD7892ARZ-2 requires a clock signal to operate, and the recommended clock frequency is between 1 MHz and 10 MHz. The clock signal should be a clean, low-jitter signal, and it is recommended to use a dedicated clock source or a clock generator IC. The clock signal should be connected to the CLKIN pin, and the clock frequency should be set according to the desired sampling rate.
• What is the recommended power supply decoupling and filtering for the AD7892ARZ-2?
  The AD7892ARZ-2 requires a clean and stable power supply to operate accurately. It is recommended to use a low-dropout linear regulator (LDO) or a switching regulator with a low output voltage ripple. Decoupling capacitors (e.g., 10 μF and 100 nF) should be placed close to the power pins, and a ferrite bead or a power inductor can be used to filter the power supply lines.
• How do I interface the AD7892ARZ-2 with a microcontroller or FPGA, and what are the requirements for the digital interface?
  The AD7892ARZ-2 has a parallel digital interface, and it can be interfaced with a microcontroller or FPGA using a parallel bus. The digital interface requires a 5 V or 3.3 V supply, and the data output is 16-bit parallel. The interface timing requirements include a clock frequency of up to 10 MHz, a data setup time of 10 ns, and a data hold time of 10 ns.
• What are the thermal management considerations for the AD7892ARZ-2, and how do I ensure reliable operation over temperature?
  The AD7892ARZ-2 is a high-performance ADC, and it can generate heat during operation. It is recommended to provide adequate thermal management, such as a heat sink or a thermal pad, to ensure reliable operation over temperature. The device is rated for operation from -40°C to 125°C, and it is recommended to keep the junction temperature below 125°C to ensure reliable operation.
