AD7893ANZ-10 - Analog Devices

Description: AD7893ANZ-10, 12 bit ADC Serial, 8-Pin PDIP

Download AD7893ANZ-10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

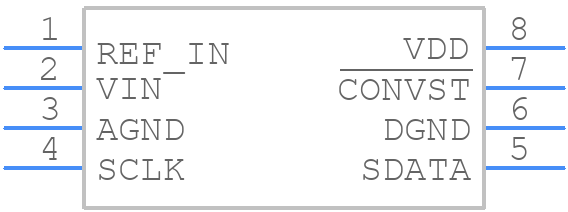

Symbol
AD7893ANZ-10 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7893ANZ-10 - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8pin dip
click to zoom
3D Models
AD7893ANZ-10 - Analog Devices - 3D model - Dual-In-Line Packages - 8pin dip
click to zoom

AD7893ANZ-10 Details

  • Manufacturer Part Number:

    AD7893ANZ-10

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, MINI, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    6 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.88 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    9 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD7893ANZ-10 Frequently Asked Questions (FAQs)

  • A multi-layer PCB with a solid ground plane is recommended. Use a star-grounding technique, where all analog and digital grounds are connected to a single point, and keep the analog and digital circuits separate. Also, use a low-ESR capacitor for decoupling and place it close to the AD7893ANZ-10.
  • The AD7893ANZ-10 has an internal calibration circuit. To calibrate, apply a known input voltage, then write the calibration code to the device. The calibration procedure is described in the datasheet, and it's recommended to perform calibration after power-up and after any changes to the reference voltage or input range.
  • Use an anti-aliasing filter to band-limit the input signal and prevent aliasing. For input overvoltage protection, use a voltage clamp or a resistive divider to limit the input voltage to within the specified range. Also, consider using a buffer amplifier to isolate the input signal from the AD7893ANZ-10.
  • The AD7893ANZ-10 has a power-on reset circuit that initializes the device. To ensure proper operation, follow the recommended power-up sequence: power up the analog supply (VCC), then the digital supply (VDD), and finally the clock signal. For power-down, reverse the sequence.
  • The AD7893ANZ-10 is sensitive to temperature. Ensure good thermal conductivity by using a heat sink or a thermally conductive PCB material. Keep the device away from heat sources, and avoid thermal gradients. Operate the device within the specified temperature range, and consider using thermal monitoring and shutdown circuits for reliable operation.
