AD7894BRZ-10 - Analog Devices

Description: ADC Single SAR 200KSPS 14-Bit Serial

Download AD7894BRZ-10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

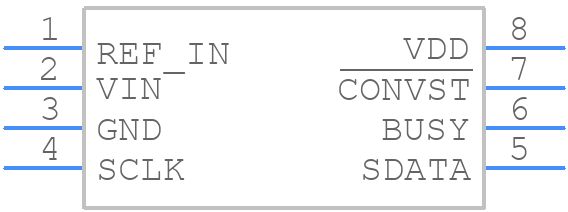

AD7894BRZ-10 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7894BRZ-10 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 LEAD (SOIC_N)-
click to zoom
3D Models
AD7894BRZ-10 - Analog Devices - 3D model - Small Outline Packages - 8 LEAD (SOIC_N)-
click to zoom

AD7894BRZ-10 Details

  • Manufacturer Part Number:

    AD7894BRZ-10

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Conversion Time-Max:

    5 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0092%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.011 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    5.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD7894BRZ-10 Frequently Asked Questions (FAQs)

  • A multi-layer PCB with a solid ground plane is recommended. The analog and digital grounds should be separated and connected at a single point. A star-grounding technique can be used to minimize noise and ensure accurate conversions.
  • The AD7894BRZ-10 has an internal calibration circuit that can be used to calibrate the device. The calibration process involves shorting the input pins to the reference voltage and then applying a full-scale input voltage. The device can then be calibrated by writing the calibration data to the internal registers.
  • The maximum sampling rate of the AD7894BRZ-10 is 100 kSPS. The power consumption increases with the sampling rate, but the device has a power-down mode that can be used to reduce power consumption when not in use.
  • The AD7894BRZ-10 has internal overvoltage protection on the input pins, but it's still recommended to use external protection circuitry such as voltage-limiting resistors and diodes to prevent damage from overvoltage conditions.
  • The recommended clock frequency for the AD7894BRZ-10 is between 1 MHz and 10 MHz. A higher clock frequency can improve the conversion accuracy, but it also increases the power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7894BRZ-10 Overview

Use the download button to access the AD7894BRZ-10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD789, or try a keyword search, such as Analog to Digital Converters
