AD7902BRQZ-RL7 - Analog Devices

Description: Dual Pseudo Differential 16-Bit, 1 MSPS PulSAR ADC 12.0 mW in QSOP

Download AD7902BRQZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

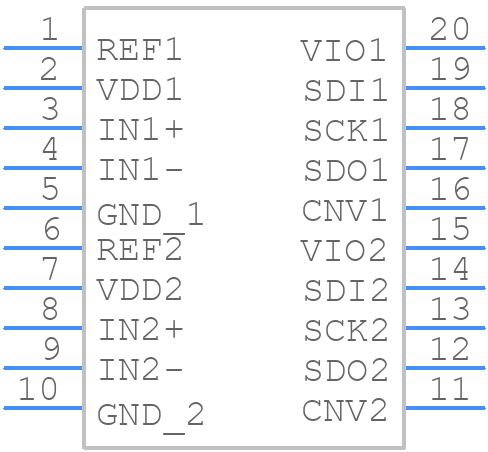

Symbol
AD7902BRQZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7902BRQZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - QSOP-20
click to zoom
3D Models
AD7902BRQZ-RL7 - Analog Devices - 3D model - Small Outline Packages - QSOP-20
click to zoom

AD7902BRQZ-RL7 Details

  • Manufacturer Part Number:

    AD7902BRQZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, MO-137AD, QSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RQ-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.1 V

  • Conversion Time-Max:

    0.71 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    8.66 mm

  • Linearity Error-Max (EL):

    0.0038%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1.6 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.64 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.91 mm

AD7902BRQZ-RL7 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD7902BRQZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane and to keep the digital signals away from the analog signals.
  • The AD7902BRQZ-RL7 has an internal calibration circuit that allows for self-calibration. However, it's recommended to perform an external calibration using an external voltage reference and a calibration resistor. The calibration procedure involves applying a known voltage to the input and adjusting the calibration resistor to achieve the desired output code.
  • The AD7902BRQZ-RL7 has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, it's recommended to provide adequate heat sinking, use a thermally conductive PCB material, and avoid operating the device near its maximum junction temperature. Additionally, it's recommended to follow the thermal design guidelines provided in the datasheet.
  • The AD7902BRQZ-RL7 has a serial interface that can be interfaced with a microcontroller or FPGA using a SPI or I2C protocol. The recommended communication protocol is SPI, and the datasheet provides a detailed description of the interface timing and protocol.
  • The AD7902BRQZ-RL7 is a sensitive analog device that requires proper electromagnetic shielding and filtering to ensure electromagnetic compatibility. It's recommended to use a shielded enclosure, filter the power supply, and use a common-mode choke to reduce electromagnetic interference.
