AD7915BCPZ-RL7 - Analog Devices

Description: 16-Bit, 1 MSPS/500 kSPS PulSAR ADCs in MSOP/LFCSP

Download AD7915BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

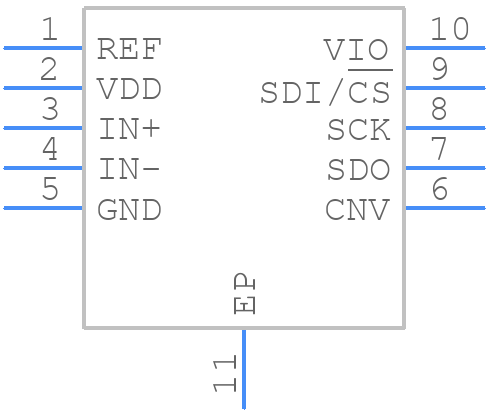

AD7915BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7915BCPZ-RL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-10-9
click to zoom
3D Models
AD7915BCPZ-RL7 - Analog Devices - 3D model - Small Outline No-lead - CP-10-9
click to zoom

AD7915BCPZ-RL7 Details

  • Manufacturer Part Number:

    AD7915BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.1 V

  • Analog Input Voltage-Min:

    -2.4 V

  • Conversion Time-Max:

    0.71 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7915BCPZ-RL7 Frequently Asked Questions (FAQs)

  • The AD7915BCPZ-RL7 is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep the analog and digital grounds separate, and place the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed close to the ADC's power pins, and the PCB should be designed to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI).
  • The AD7915BCPZ-RL7 has an internal calibration mechanism, but it may require additional calibration for specific applications. Engineers can use the ADC's internal calibration registers to adjust the offset and gain errors. Additionally, external calibration techniques such as system-level calibration or self-calibration can be used to achieve higher accuracy. It is recommended to consult the AD7915BCPZ-RL7's datasheet and application notes for more information on calibration procedures.
  • The AD7915BCPZ-RL7 can achieve a maximum sampling rate of 250 kSPS. However, the power consumption increases with the sampling rate. At the maximum sampling rate, the power consumption is approximately 15 mW. Engineers should consider the trade-off between sampling rate and power consumption when designing their system.
  • The AD7915BCPZ-RL7 has internal overvoltage protection (OVP) and undervoltage protection (UVP) circuits that prevent damage to the ADC in case of voltage excursions beyond the specified input range. The OVP circuit limits the input voltage to a maximum of 7 V, while the UVP circuit prevents the ADC from operating below 1.5 V. However, it is still recommended to use external protection circuits, such as voltage limiters or clamp circuits, to ensure the ADC's reliability and accuracy.
  • The AD7915BCPZ-RL7 is specified to operate from -40°C to 125°C. However, the ADC's accuracy and linearity may degrade at higher temperatures. Engineers should consult the datasheet and application notes for more information on the ADC's performance at high temperatures and consider using thermal management techniques, such as heat sinks or thermal interfaces, to ensure reliable operation.
