AD7916BRMZ-RL7 - Analog Devices

Description: Analog to Digital Converters - ADC Differential 16-bit 500KSPS PulSAR ADC

Download AD7916BRMZ-RL7 Model

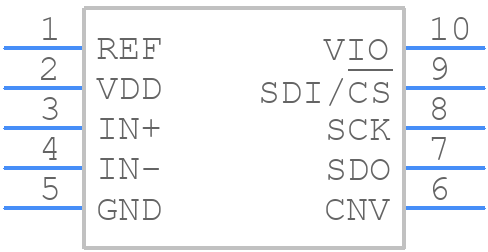

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AD7916BRMZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10
click to zoom
3D Models
AD7916BRMZ-RL7 - Analog Devices  - 3D model - Small Outline Packages - RM-10
click to zoom

AD7916BRMZ-RL7 Details

  • Manufacturer Part Number:

    AD7916BRMZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.1 V

  • Analog Input Voltage-Min:

    -2.4 V

  • Conversion Time-Max:

    1.6 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7916BRMZ-RL7 Frequently Asked Questions (FAQs)

  • The AD7916BRMZ-RL7 is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep the analog and digital grounds separate, and place the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed close to the ADC's power pins, and the PCB should be designed to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI).
  • The AD7916BRMZ-RL7 has an internal calibration mechanism, but it may require additional calibration steps to achieve the highest accuracy. The calibration process typically involves applying a known input voltage and adjusting the ADC's offset and gain registers to match the expected output code. The calibration process should be performed at the operating temperature range and with the same power supply voltage as the application.
  • The AD7916BRMZ-RL7 has a maximum sampling rate of 250 kSPS, but the actual achievable sampling rate may be limited by the system's clock frequency, the ADC's conversion time, and the interface protocol. Increasing the sampling rate will also increase the power consumption, which can be estimated using the formula: Power Consumption (mW) = (Sampling Rate (kSPS) x Conversion Time (μs) x Supply Voltage (V)) / 1000.
  • The AD7916BRMZ-RL7 outputs 16-bit digital data, which can be processed using various techniques such as averaging, filtering, and error correction. The recommended data processing and filtering technique depends on the application requirements, but common techniques include using a digital filter, such as a moving average filter or a low-pass filter, to reduce noise and improve the signal-to-noise ratio (SNR).
  • The AD7916BRMZ-RL7 has a specified input voltage range, and exceeding this range can affect the ADC's performance and accuracy. The ADC can tolerate some amount of input overvoltage and undervoltage, but excessive voltage excursions can cause the ADC to saturate, produce incorrect results, or even damage the device. It is recommended to use input protection circuits, such as voltage limiters or clamping diodes, to prevent input voltage excursions beyond the specified range.
