AD7916BRMZ - Analog Devices

Description: Analog to Digital Converters - ADC Differential 16-bit 500KSPS PulSAR ADC

Download AD7916BRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

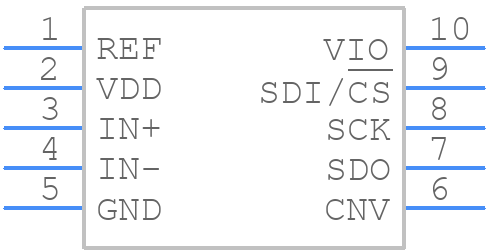

AD7916BRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7916BRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP] (RM-10)
click to zoom
3D Models
AD7916BRMZ - Analog Devices - 3D model - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP] (RM-10)
click to zoom

AD7916BRMZ Details

  • Manufacturer Part Number:

    AD7916BRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.1 V

  • Analog Input Voltage-Min:

    -2.4 V

  • Conversion Time-Max:

    1.6 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7916BRMZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signals away from the digital signals. Also, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the decoupling capacitors close to the pins.
  • To ensure accuracy, use a high-quality clock source, ensure the input signal is properly filtered and buffered, and use the correct gain setting for the input range. Also, consider using the internal clock or an external clock with a low jitter to minimize conversion errors.
  • The recommended power-up sequence is to power up the AVDD pin first, followed by the DVDD pin, and then the digital inputs. This ensures that the analog circuitry is powered up before the digital circuitry, preventing any potential damage or incorrect operation.
  • First, check the power supply voltages and ensure they are within the recommended range. Then, verify that the clock frequency is within the recommended range and that the input signal is within the specified range. Also, check the gain setting and ensure it is correct for the input range. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines.
  • The AD7916BRMZ has an internal calibration feature that can be used to calibrate the ADC. The calibration process involves applying a known input voltage and then reading the corresponding digital output code. The calibration data can then be used to correct for any offset and gain errors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7916BRMZ Overview

Use the download button to access the AD7916BRMZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD791, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
