AD7920AKSZ-500RL7 - Analog Devices

Description: 250 kSPS, 12- Bit ADC in 6 Lead SC70

Download AD7920AKSZ-500RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

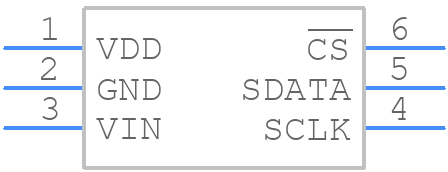

Symbol
AD7920AKSZ-500RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7920AKSZ-500RL7 - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - 6-Lead Thin Shrink Small Outline Transistor Package [SC70] (KS-6)
click to zoom
3D Models
AD7920AKSZ-500RL7 - Analog Devices - 3D model - SOT23 (6-Pin) - 6-Lead Thin Shrink Small Outline Transistor Package [SC70] (KS-6)
click to zoom

AD7920AKSZ-500RL7 Details

  • Manufacturer Part Number:

    AD7920AKSZ-500RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-203AB, SC-70, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    KS-6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    3.2 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Linearity Error-Max (EL):

    0.0366%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP6,.08

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.25 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    1.25 mm

AD7920AKSZ-500RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, keep the ADC input pins away from the digital signals and use a low-pass filter to reduce noise.
  • To ensure accurate conversion results, make sure to follow the recommended analog input range, use a stable and accurate reference voltage, and ensure proper signal conditioning and filtering. Also, calibrate the ADC regularly to account for any offset or gain errors.
  • The maximum sampling rate of the AD7920AKSZ-500RL7 is 500 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, analog input bandwidth, and digital interface speed.
  • Yes, the AD7920AKSZ-500RL7 can be used in a multi-channel application. However, you need to ensure that the channels are properly multiplexed and that the ADC is properly configured to handle the multiple channels. You may also need to add additional circuitry to handle channel switching and signal conditioning.
  • To handle overvoltage conditions, use external protection diodes or voltage clamps to limit the input voltage to within the recommended range. You can also use a voltage limiter or a clamp circuit to prevent overvoltage conditions.
