AD7924BRU - Analog Devices

Description: Analog to Digital Converters - ADC 12-Bit 4CH 1 Msps W/ Sequencer

Download AD7924BRU Model

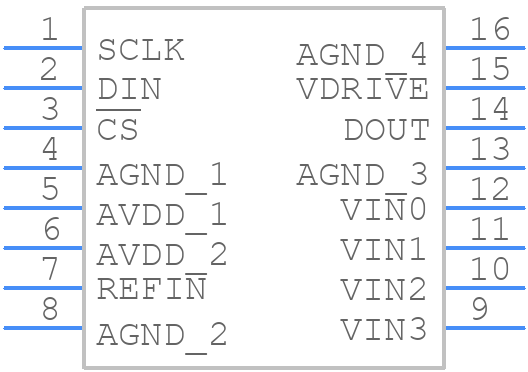

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AD7924BRU - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD7924BRU - Analog Devices  - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD7924BRU Details

  • Manufacturer Part Number:

    AD7924BRU

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    5 V

  • Conversion Time-Max:

    0.8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e0

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    2.7 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD7924BRU Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up VDD first, followed by VREF, and then the digital interface (e.g., SCLK, CS, and DIN). This ensures that the internal reference voltage is stable before the ADC starts converting.
  • To prevent damage to the ADC, it's recommended to use external protection circuitry, such as voltage-limiting resistors or clamping diodes, to limit the input voltage to within the specified range. Additionally, consider using a voltage divider or attenuator to reduce the input voltage to a level within the ADC's range.
  • Clock jitter can affect the ADC's performance by introducing noise and reducing the effective resolution. To minimize the impact of clock jitter, use a high-quality clock source with low jitter, and consider using a clock jitter attenuator or a clock buffer to clean up the clock signal.
  • To minimize noise and interference, follow good layout and routing practices, such as keeping digital signals away from analog signals, using separate power and ground planes, and using shielding or guard rings to isolate sensitive signals. Additionally, consider using a ground plane under the ADC and keeping the digital interface signals as short as possible.
  • The AD7924BRU has an internal calibration feature that can be used to calibrate the ADC. The recommended method is to use the internal calibration feature in conjunction with an external calibration voltage source. The calibration process involves applying a known voltage to the input and then using the ADC's internal calibration feature to adjust the gain and offset to match the expected output code.
