Part Image

AD7924BRUZ-REEL - Analog Devices

Description: Analog to Digital Converters - ADC 12-Bit 4,CH 1 Msps ADC I.C.

Download AD7924BRUZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

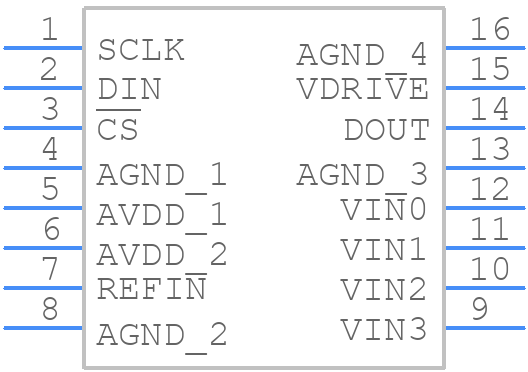

AD7924BRUZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7924BRUZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD7924BRUZ-REEL - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD7924BRUZ-REEL Details

  • Manufacturer Part Number:

    AD7924BRUZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    5 V

  • Conversion Time-Max:

    0.8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    2.7 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7924BRUZ-REEL Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signal traces away from the digital signal traces. Additionally, use a low-pass filter on the analog input pins to reduce noise.
  • The AD7924BRUZ-REEL has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and then reading the output code. The device can then be calibrated by adjusting the internal offset and gain registers.
  • The maximum sampling rate of the AD7924BRUZ-REEL is 250 kSPS (kilo-samples per second). However, the actual sampling rate may be limited by the system's clock frequency, the conversion time, and the settling time of the analog input signal.
  • The AD7924BRUZ-REEL has internal overvoltage protection on the analog input pins, but it's still recommended to use external protection circuitry, such as voltage-limiting resistors and diodes, to prevent damage to the device in case of overvoltage conditions.
  • The power consumption of the AD7924BRUZ-REEL depends on the operating mode, clock frequency, and conversion rate. To minimize power consumption, use the lowest possible clock frequency, reduce the conversion rate, and use the power-down mode when not converting.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7924BRUZ-REEL Overview

Use the download button to access the AD7924BRUZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD792, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
