AD7933BRUZ - Analog Devices

Description: AD7933BRUZ, 10 bit ADC Differential,, Parallel, 28-Pin TSSOP

Download AD7933BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

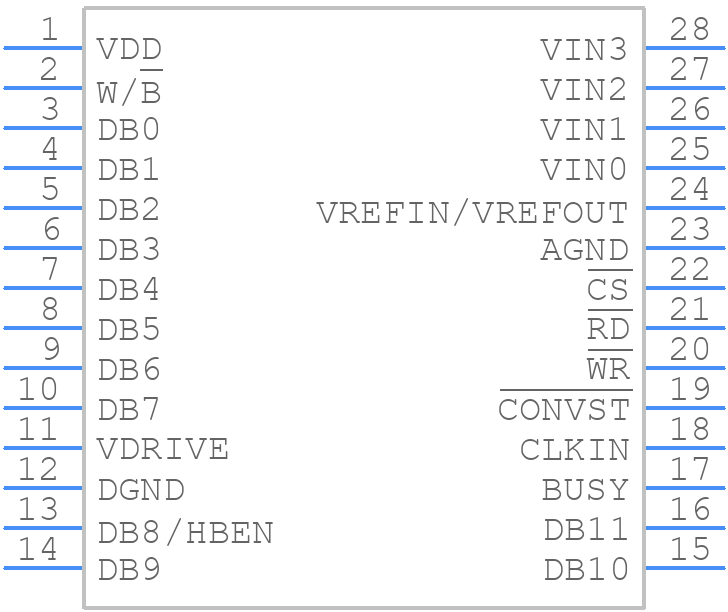

Symbol
AD7933BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7933BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-28 (TSSOP)-1
click to zoom
3D Models
AD7933BRUZ - Analog Devices - 3D model - Small Outline Packages - RU-28 (TSSOP)-1
click to zoom

AD7933BRUZ Details

  • Manufacturer Part Number:

    AD7933BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-153-AE, TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RU-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    0.675 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1.5 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    2.7 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7933BRUZ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD7933BRUZ involves keeping the analog and digital sections separate, using a ground plane, and minimizing noise coupling. A 4-layer PCB with a dedicated analog ground plane is recommended. The AD7933BRUZ should be placed close to the analog signal sources, and the digital signals should be routed away from the analog signals.
  • The AD7933BRUZ has built-in ESD protection, but additional external protection may be necessary depending on the application. It is recommended to use a TVS (Transient Voltage Suppressor) diode or a Zener diode to protect the input pins from ESD events. The PCB layout should also be designed to minimize the risk of ESD damage.
  • The maximum sampling rate of the AD7933BRUZ is 1.5 MSPS (million samples per second), but this can be affected by the clock frequency, the conversion mode, and the output data rate. The datasheet provides more information on the sampling rates achievable with different clock frequencies and conversion modes.
  • The AD7933BRUZ does not require calibration, as it has an internal calibration circuit that is performed at power-up. However, the user may need to perform a system-level calibration depending on the application requirements. The datasheet provides more information on the calibration process and the calibration registers.
  • The power consumption of the AD7933BRUZ depends on the operating mode, the clock frequency, and the output data rate. The typical power consumption is around 15 mW at 1.5 MSPS, but this can be reduced to around 1 mW in power-down mode. The datasheet provides more information on the power consumption in different operating modes.
