AD7949BCPZRL7 - Analog Devices

Description: 14-Bit, 8-Channel, 250 kSPS PulSAR ADC

Download AD7949BCPZRL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

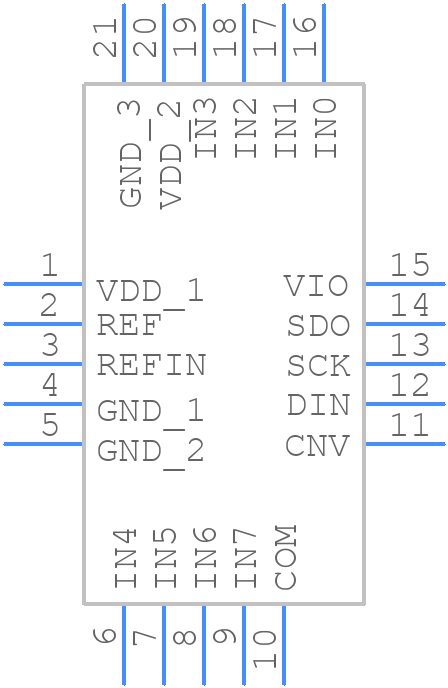

AD7949BCPZRL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7949BCPZRL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - AD7949BCPZRL7
click to zoom
3D Models
AD7949BCPZRL7 - Analog Devices - 3D model - Quad Flat No-Lead - AD7949BCPZRL7
click to zoom

AD7949BCPZRL7 Details

  • Manufacturer Part Number:

    AD7949BCPZRL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.053 V

  • Analog Input Voltage-Min:

    -2.043 V

  • Conversion Time-Max:

    2.2 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    1%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    8

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.25 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD7949BCPZRL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signal traces away from the digital signal traces. Additionally, use a low-ESR capacitor for the VDD pin and a 0.1uF capacitor for the AVDD pin.
  • The AD7949BCPZRL7 has an internal calibration circuit that can be enabled by setting the CAL bit in the control register. The device also has an internal voltage reference that can be calibrated using the VREFIN pin. It is recommended to follow the calibration procedure outlined in the datasheet to ensure accurate conversions.
  • The maximum sampling rate of the AD7949BCPZRL7 is 250 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, the conversion mode, and the settling time of the analog input signal.
  • The AD7949BCPZRL7 outputs 16-bit data in a twos-complement format. The output data can be read through the SPI interface, and the format of the output data is outlined in the datasheet. The output data can be handled using a microcontroller or a digital signal processor.
  • The power consumption of the AD7949BCPZRL7 is typically 15 mW at 250 kSPS. To minimize power consumption, the device can be powered down using the PDWN pin, and the power-down mode can be controlled using the control register. Additionally, the device can be operated at a lower clock frequency to reduce power consumption.
