AD7951BCPZ - Analog Devices

Description: Analog Devices AD7951BCPZ, 14 bit Serial ADC, Differential Input, 48-Pin LFCSP VQ

Download AD7951BCPZ Model

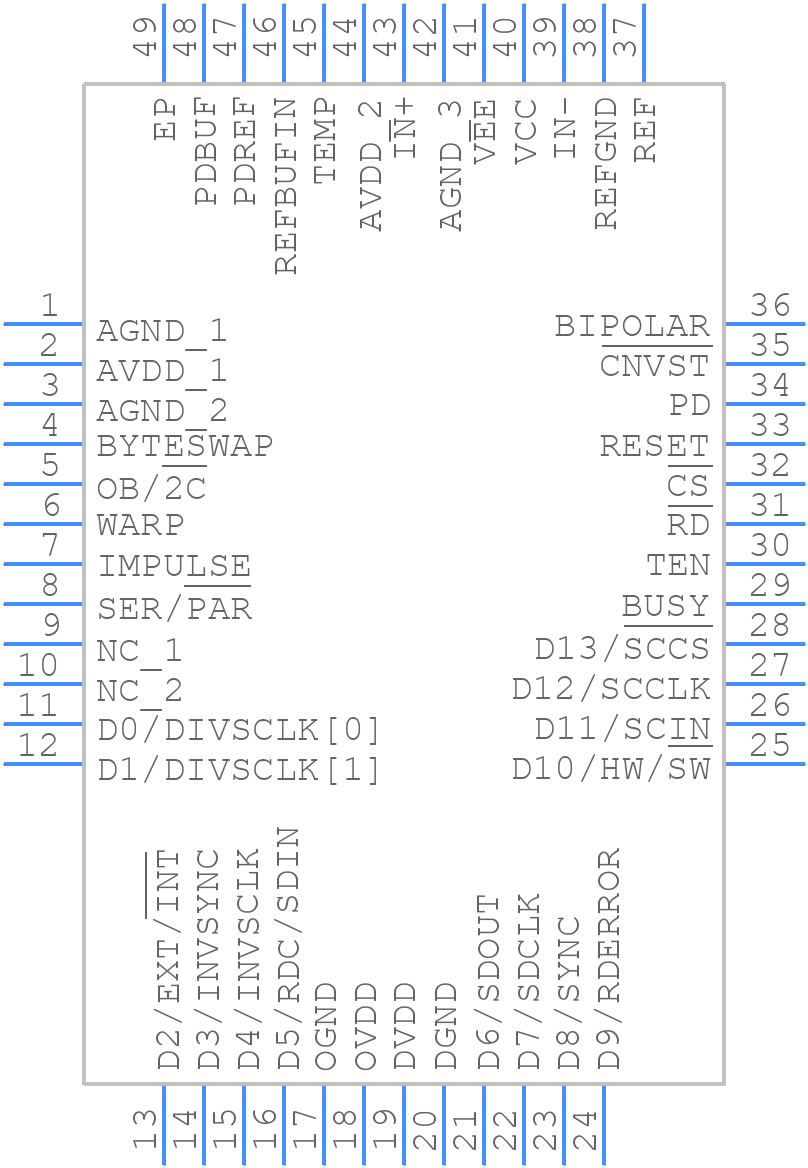

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AD7951BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-48-1 (LFCSP)
click to zoom
3D Models
AD7951BCPZ - Analog Devices  - 3D model - Quad Flat No-Lead - CP-48-1 (LFCSP)
click to zoom

AD7951BCPZ Details

  • Manufacturer Part Number:

    AD7951BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    7 X 7 MM, LEAD FREE, MO-220VKKD-2, LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-1

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    10.1 V

  • Analog Input Voltage-Min:

    -10.1 V

  • Conversion Time-Max:

    1.35 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, 8 BITS, PARALLEL, WORD

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

AD7951BCPZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD7951BCPZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the ADC close to the analog signal sources and use shielding to reduce electromagnetic interference (EMI).
  • The AD7951BCPZ has an internal calibration circuit that can be used to calibrate the ADC. The calibration process involves applying a known input voltage and then using the ADC's internal calibration registers to adjust the gain and offset of the converter. The datasheet provides a detailed calibration procedure that should be followed to ensure accurate conversions.
  • The AD7951BCPZ has a maximum sampling rate of 250 kSPS (kilosamples per second). However, the actual sampling rate that can be achieved depends on the specific application and the clock frequency used. The datasheet provides more information on the sampling rate and clock frequency requirements.
  • The AD7951BCPZ has a serial interface that can be connected to a microcontroller or FPGA. The interface consists of a clock input (SCLK), a data input (SDIN), and a data output (DOUT). The microcontroller or FPGA can be used to generate the clock signal and send the conversion command to the ADC. The datasheet provides more information on the interface timing and protocol.
  • The power consumption of the AD7951BCPZ depends on the operating mode and the clock frequency used. The typical power consumption is around 15 mW at a clock frequency of 10 MHz. To reduce power consumption, the ADC can be operated in a low-power mode, and the clock frequency can be reduced. Additionally, the power-down mode can be used to reduce power consumption when the ADC is not in use.
