AD7951BSTZ - Analog Devices

Description: Analog to Digital Converters - ADC 14-Bit 1MSPS Software Program ADC IC

Download AD7951BSTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

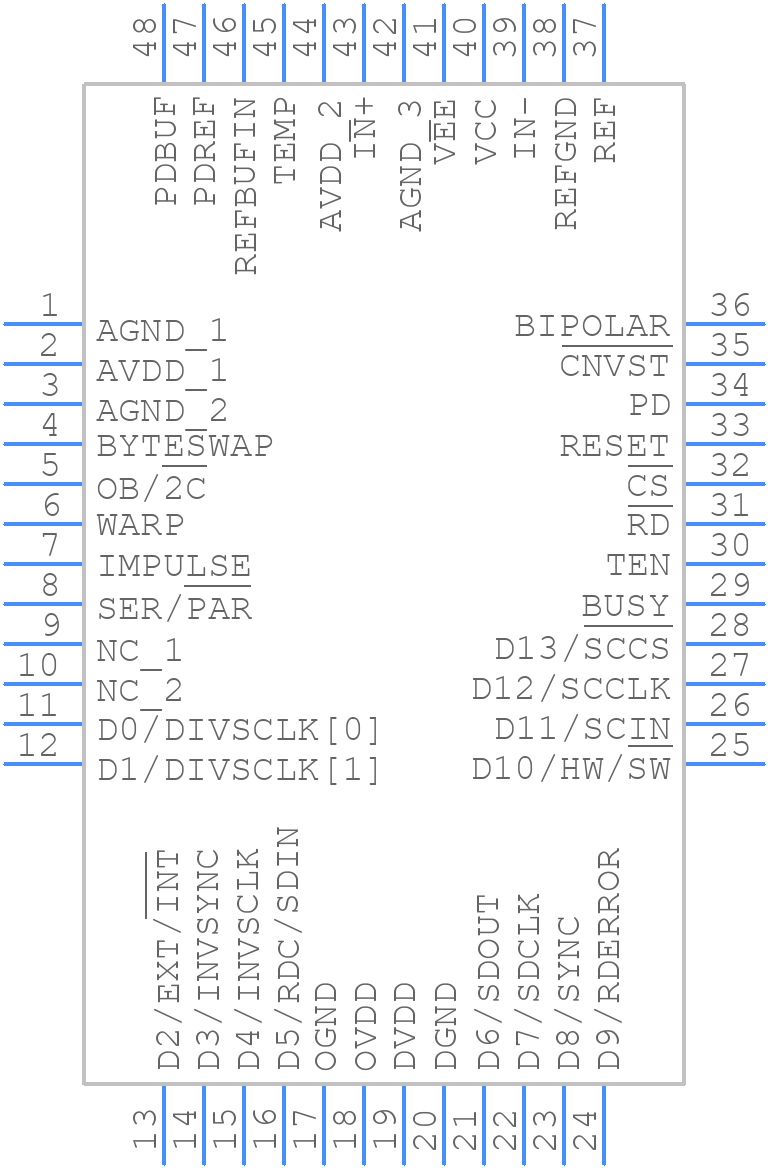

AD7951BSTZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7951BSTZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-Lead Low Profile Quad Flat Package [LQFP] (ST-48)
click to zoom
3D Models
AD7951BSTZ - Analog Devices - 3D model - Quad Flat Packages - 48-Lead Low Profile Quad Flat Package [LQFP] (ST-48)
click to zoom

AD7951BSTZ Details

  • Manufacturer Part Number:

    AD7951BSTZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    LEAD FREE, MO-026BBC, LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    ST-48

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    10.1 V

  • Analog Input Voltage-Min:

    -10.1 V

  • Conversion Time-Max:

    1.35 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, 8 BITS, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AD7951BSTZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from each other. Also, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the AVCC pin.
  • The AD7951BSTZ has an internal calibration circuit that can be enabled by setting the CAL pin high. The device will then perform a self-calibration sequence. Additionally, the user can perform an external calibration by applying a known input voltage and adjusting the offset and gain registers accordingly.
  • The maximum input voltage that the AD7951BSTZ can handle is ±VREF, which is typically ±2.5V. Exceeding this voltage can damage the device. It's recommended to use input protection circuitry, such as clamping diodes or resistors, to prevent overvoltage conditions.
  • To optimize the AD7951BSTZ for low-power operation, set the power-down pin (PD) high to enter a low-power state. Additionally, reduce the clock frequency, use a lower supply voltage, and minimize the number of conversions per second. The device also has a built-in shutdown mode that can be enabled by setting the SHDN pin high.
  • The recommended clock frequency for the AD7951BSTZ is between 1 MHz and 10 MHz. A higher clock frequency can improve the device's throughput, but it may also increase the power consumption and noise sensitivity. A lower clock frequency can reduce power consumption, but it may also reduce the device's throughput.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7951BSTZ Overview

Use the download button to access the AD7951BSTZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD795, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
